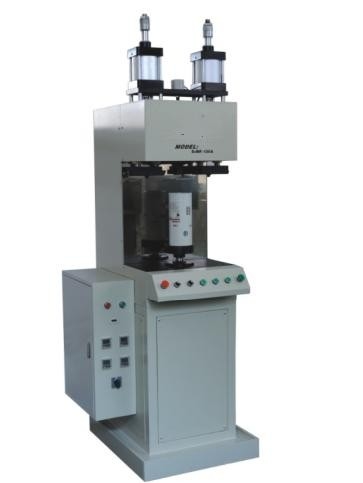

Full Auto Fuel Filter Seaming Machine Oil Filter Making Machine , 12cans / min

Full Auto Fuel Filter Seaming Machine Oil Filter Making Machine , 12cans / min

Specification

1. Production Capacity: 8pcs/min
2. Sealing Diameter: Ф80-Ф130mm
3. Sealing Parts Assembly Height :200-300mm
4. Sealing Parts Steel Plate Max Thickness :0.5-1mm
5. Delivery Range :150mm
6. Motor Power:2.25kw
7. Working Air Pressure:0.6Mpa
8. Power Supply: 380V
9. M/C Weight:800kg
10. M/C Size: 940*640*2150

Feature

1. This specially designed machine has the function of seal gluing and seaming at the same time and it is high efficiency.
2. The seaming molds moving action is automatically finished by cylinder set program.
3. Pressing the left right buttons manually at the same time, so that safety operation.
4. This strong structure designed machine has the circulation function and its electric control is easy to operate.
5. This high degree of automatic machine has the completely auto seaming circulation of the filter parts loading clutch seaming rollers advance and retreat. It is high efficiency and good seaming quality.
6. This machine adopts the inverted seaming ways and far develop its working efficiency.
7. The motor of the seaming machine equips the brake device which will avoid the inner pressing mold of loosening. Then the filters are seamed with high quality.

Applications

   The machine is professional used to seal the shells of rotary type and fuel filter with sealing back plate.
