Steel Bonding Oil Filter Making Machine for Filter Element , 12pcs / min

Basic Information

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJJT-250N

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment

Get Best Price Contact Now

Detail Information

High Light:

Filter Machinery

Product Description

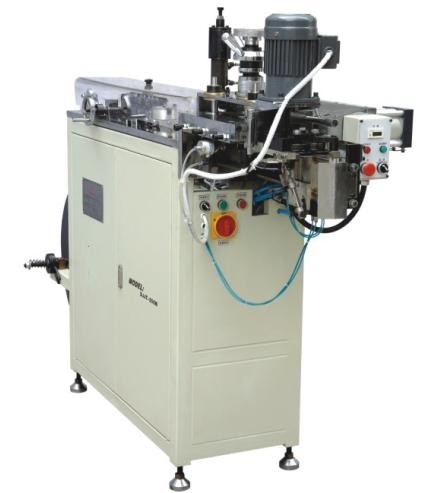

Steel Bonding Oil Filter Making Machine for Filter Element , 12pcs / min

Specification

Product Capacity	12pcs/min
Filter Paper Height	30-250mm
Pleating Height	10-38mm
Sizes of Steel Strips	Thickness 0.25-0.3mm width 12mm Coiled material inner diameter＞Ф150mm Out diameter ＜600mm
Motor Supply	380V/50HZ
Working Air Pressure	0.6Mpa
M/C Weight	450kg
M/C Size	19006501400

Features

The machine has high automatic degree for simple operation, with unique design and long service life.
When molding, the stip bears knurling treatment, by which the paper is firmly held and hard of dropping.
Automatically perform the complete procedure of strip molding, clamping, shutoff and resuming.
Uses strip clamp filter pleating joint to prevent the filter element form leakage.
The clamping height and width are easy to be adjusted and keep consistency.

Applications

The machine is professionally used for clipping the paper ends using the steel strip.
