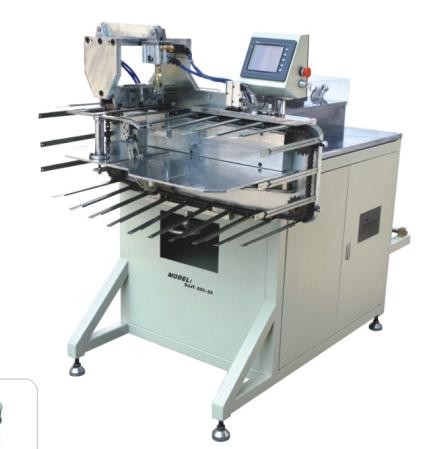

25 Working Stations Oil Filter Making Machine Filter Steel Clipping 18pcs / min

Basic Information

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJJT-250-25

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment

Get Best Price Contact Now

Detail Information

High Light:

Filter Machinery

Air Filter Manufacturing Equipment

Product Description

25 Working Stations Oil Filter Making Machine Filter Steel Clipping 18pcs / min

Specification

Product Capacity	18pcs/min
Filter Paper Height	30-250mm
Pleating Height	10-38mm
Sizes of Steel Strips	Thickness 0.25-0.3mm width 12mm Coiled material inner diameter＞Ф150mm Out diameter ＜600mm
Motor Supply	380V/50HZ
Working Air Pressure	0.6Mpa
M/C Weight	450kg
M/C Size	19006501400

Features

The whole working process of the steel strip forming, loading, clipping, cutting and resuming is automatically finished by the PLC control pneumatic and mechanic.
It is fast speed and high efficiency.
The steel strip clip the filter paper ends tightly to prevent the filter element from leakage.
The clipping height and width are easily to be adjusted and keep consistency as well.
The computer monitor control is used which is easy operation.
There are 25 clips and convey stations, it is fast speed and high efficiency.
This machine has the cylinder un-loading device; it is high degree of the automatic.

Applications

The machine is professionally used for clipping the paper ends using the steel strip.
