| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJZJ-4 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | Air Filter Manufacturing Equipment,Pleater Machine |
||
|---|---|---|---|

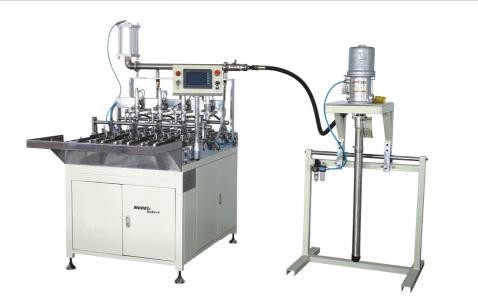

Filter Caps PVC Gluing / Dispensing Machine Air Filter Production Line
Consist
1. Main Machine
2. Host Gluing Machine
2. Pump
3. Computer Control Cabinet
Specification
| The Out Diameter of the End Cap | Ф50-Ф110mm |
| Capacity | 4pcs/times |
| Speed | 30-50pcs/min |
| Viscidity | ≤50000CP |
| Suitable Adhesives | PVC |
| Power Supply | 380V/50HZ |
| Main Machine Power | 120W+750W |
| Working Air Pressure | 0.6Mpa |
| The Air Pressure of the Gluing Pump | ≤0.45Mpa |
| M/C Weight | 400kg |
| M/C Size | 1600*1600*1800 |
Features
1. The action of end caps loading and gluing can be regulated easily by computer control, so it is coordinate and work normally.
2. The machine has the function of evenly gluing on the end cap of the filter.
3. This machine has excellent characteristics such as high efficiency and easy operation.
4. Adopt import gluing pump guarantee for accurately gluing.
5. Specially equipped the gluing tanks which make is gluing much more evenly.
Applications
The machine is used for glue dispensing on the up&down end caps of the spin on filter element
