Filter End Cap PVC Gluing Pleater Machine Multifunction Ф60 - Ф100mm

Basic Information

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJZJ-2

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment

Get Best Price Contact Now

Detail Information

High Light:

Filter Machinery

Air Filter Manufacturing Equipment

Product Description

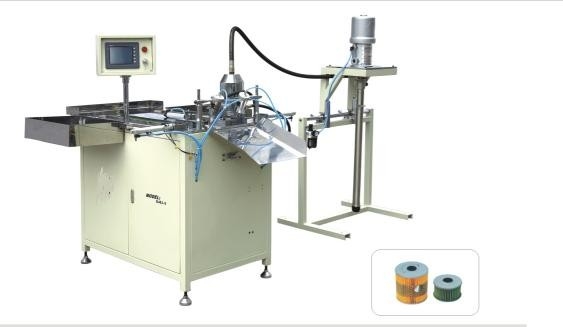

Filter End Cap PVC Gluing Pleater Machine Multifunction Ф60 - Ф100mm

Consist

1. Main Machine

2. Pump

3. Computer Control Box

Specification

Available ID of the End Cap	Ф60-Ф100mm
Max End Caps	2pcs
Speed	15pairs/min
Viscidity of Glue	≤50000CP
Glue Kind	PVC( high temperature adhesive glue)
Power Supply	380V/50HZ
Conveyer Motor Power	0.75kw
End Cap Against Motor Power	90w
Working Air Pressure	0.6Mpa
Pump Air Pressure	≤0.45Mpa
M/C Weight	400kg
M/C Size	160019801430

Features

Simple and easy to adjust the action of the cap conveying and glue dispensing by computer control.
Machine works consistently and steadily.
This machine has the function of even glue while glue dispensing, so the glue on the end cap will be evenly, glue the up-down caps at the same time to develop the efficiency and easy for the next process.
Adopts import pump to ensure correct gluing out amount.
This machine is equipped with glue storage to make it glued evenly

Applications

The machine is used for glue dispensing on the up&down end caps of the spin on filter element
