| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | ZH-2 |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | leakage testing machine,automatic test equipment |
||
|---|---|---|---|

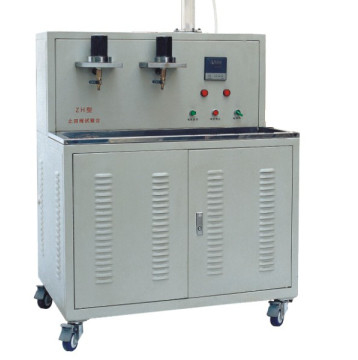

Anti - drain Back Valve Filter Testing Equipment 20L Oil Tank Capacity
Features:
1. Automatically control the calibrated oil level.
2. The working table and oil tank are all made of stainless steel and use excellent copper pipelines and coupler.
3. Test criterion:JB/T6725-93,ISO4548
Specifications:
| Oil Pump Flow | 5L/MIN |
| Temperature Control | Normal- 100℃ |
| Oil Tank Capacity | 20L |
| Motor Power | 0.25kw |
| Power Supply | 380V/50HZ |
| Heating Power | 1kw |
| M/C Weight | 300kg |
| M/C Size | 1300*715*1160 |
Applications
It is used to measure the check valve’s ability to prevent the oil from initial draining when installing the rotary oil filter.
