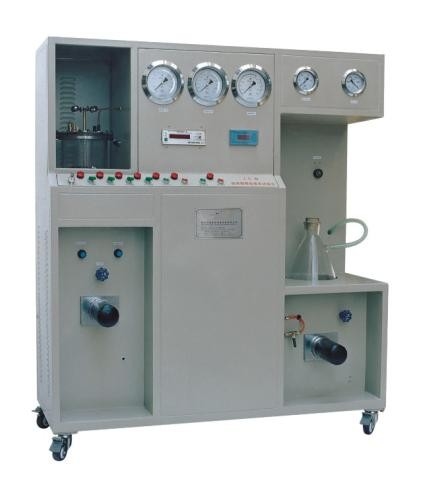

Oil Filter Primary Efficiency Testing Equipment Customized , 0.2 - 5L / min

small.img.alt
small.img.alt
Basic Information
Place of Origin: Wenzhou, China
Brand Name: CHANGJIANG
Certification: CE ISO9001
Model Number: JC-4
Price: Negotiable
Packaging Details: Standard export package
Delivery Time: 30 Days after deposit
Payment Terms: 30% T/T payment in advance, 70% T/T payment before shipment
Get Best Price Contact Now
Detail Information
High Light:

filter tester

,

leakage testing machine

Product Description



Oil Filter Primary Efficiency Testing Equipment Customized , 0.2 - 5L / min





Specifications:



Max Capacity of the Oil Tank 6L
Flow Precision 1 grade
Flow Test Scope 0.2-5L/min
Adding Pressure 0-0.2Mpa
Working Air Pressure 0.6Mpa
Motor Power 250w
Power Supply 380v/50hz
M/C Weight 400kg
M/C Size 740*1650*1820





Features:



  1. Equipped 0.45μm precise filter to ensure the testing oil clean.
  2. Use ellipse gear flow meter to accurately test the set oil flow.
  3. Mixing system makes the impurities even mix with oil.
  4. Test criterion: JB/T8122-1999,JB/T6725-93,ISO4020
  5. It is used to test the primary efficiency of oil and fuel filters.





Applications





  It is used to test the primary efficiency of oil and fuel filters.
