| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CZ-AUTO 55-1050F |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Max Width: | 1050mm | Adjustable Pleating Height: | 4-58mm |
|---|---|---|---|
| Pleating Speed: | Max 200pleats/min | Heating Temp:: | Normal-300℃ |
| Preheating Power: | 4KW | Power Supply:: | 380v/50hz |
| High Light: | Air Filter Manufacturing Equipment,Filter Machinery |
||

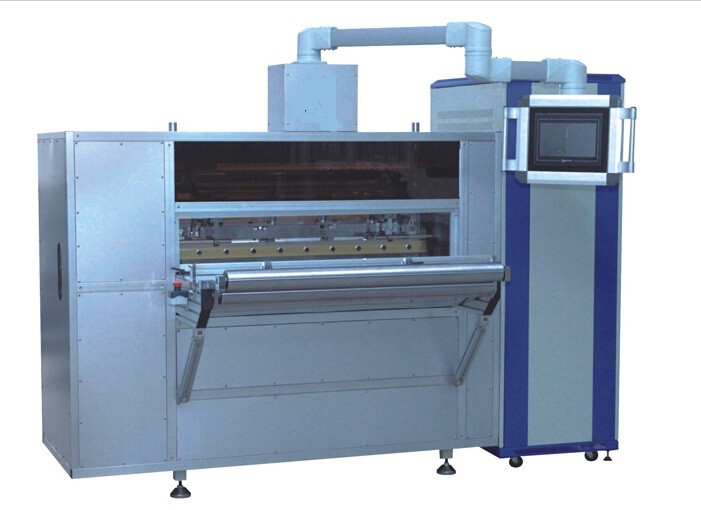

German Type Full-auto High Speed CNC Knife Paper Pleating Machine , Adjustable Pleating Height : 4 mm-58mm
General description
The device is applicable to any material or multilevel material folded filter paper.
Specification
1,Max width: 1050mm
2,adjustable pleating height:4-58mm
3,Pleating speed: 0-200pairs/min
4,Power supply:380v/50hz
5,Motor power:4kw
6,Preheating power:4KW
7,Heating temp:normal-300℃
8,Working air pressure:0.6Mpa
9,M/C weight: 700kg
7,M/C size: 2600×1800×1800mm(L×W×H)
Features
1 The folding machine adopts upper and lower knife alternatively perform folding,from the knife automatic adjustment by computer,can reach different fold higher requirements,accurate size,as smooth as a.
2 In the paper folding machine automatic dotting counter,folding processing and preheating and forming etc..
3 This machine can also be folded all the different rules of fold change.
4 Folding knife of this machine can change any angle,ensure the folding does not damage any kind of filter material.
Applications
This production line is suitable for the automobile industry three,hydraulic industry,purification industry,the water treatment industry.
