| Place of Origin: | wenzhou,China |
|---|---|
| Brand Name: | CHANGJINAG |
| Certification: | ISO9001,CE |
| Model Number: | CJZD-700 |
| Minimum Order Quantity: | 1SET |
| Packaging Details: | PLYWOOND CASES |
| Delivery Time: | 30DAYS |
| Payment Terms: | Engineers available to service machinery overseas |
| High Light: | Pleater Machine,Filter Machinery |
||
|---|---|---|---|

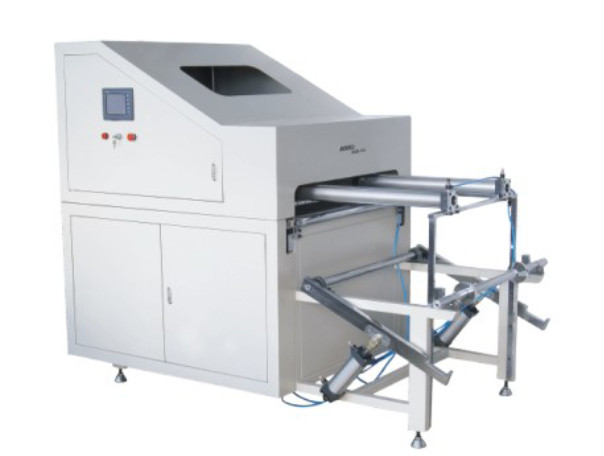

20 - 300mm Composited Material Pleating Machine , Air Filter Making Machine
General Description
It is specially used for bonding the non-woven fabric with mesh of the primary medium efficiency filters by hot melt.
Specification
| Production Capacity | 3m/min |
| Product Height | 20-300mm( adjustable) |
| Product Width | ≤700mm |
| Coil Diameter | ≤Φ600mm |
| Power Supply | 220V/50HZ |
| Working Air Pressure | 0.6Mpa |
| M/C Weight | 500kg |
| M/C Dimension | 2200*1000*850 |
Feature
1. Automatically pleat the composited materials, especially suitable for max, height products pleating.
2. The pleating height regulated by computer with high precise control.
3. Easy operation with pneumatic materials de-coiler.
Applications
This machine is specialized in pleating the composited materials of primary medium efficiency filters.
