1.5 KW Oil Filter Pleating Machine , Pleating Height 5mm - 55mm

1.5 KW Oil Filter Pleating  Machine , Pleating Height 5mm - 55mm

Quick Detail:

Product Description

Specification:

1. Pleating height: 5 - 55mm
2. Layers pleated: 1 - 5
3. Pleating speed: 20 - 150 pleats/min
4. Max. Pleating width: 1100mm
5. Thickness of material: 0.5 - 4mm
6. Speed adjustable motor: 1.5KW
7. Power: 1.5KW 380V Heater Power: 3KW Heat Temperature: 200° C
8. Machine weight: 730KG
9. Machine dimension: 1430mm X 1550mm X 1400mm
10. This machine can be made as customer's requirements.

Feature

1. The pre-slitting machine can accurately and freely adjust the cutting dimensions through frequency converter speed regulation and cylinder blades in different filter sizes. It is simple operated but smooth and effective. After slitting the paper, the conveyor for feeding the filter paper runs in synchronism with the marking machine by equipping the infrared monitoring system.
2. The marking machine can mark in different pleat sizes, the marking distance can be set freely by the computer screen, and accurately marking distance will be appeared with the step motor loading.

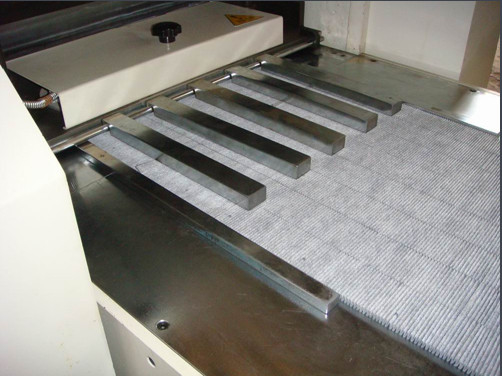

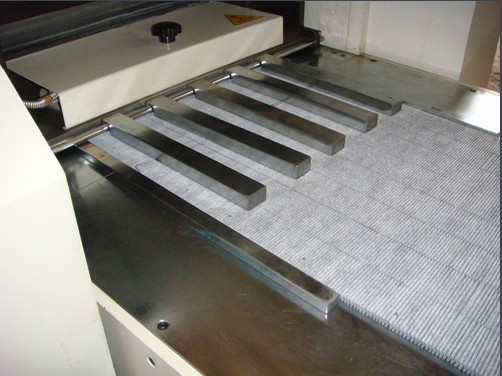

3. The pleater uses upper and lower blades to alternately finish the folding, and then different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
4. After marking, the filter paper will be pleated and pre-heated.

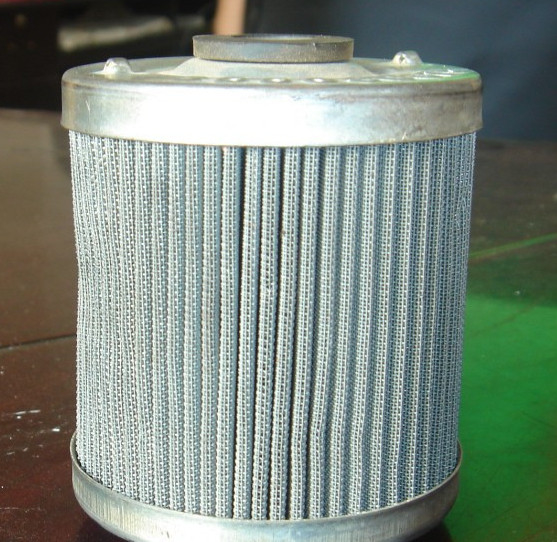

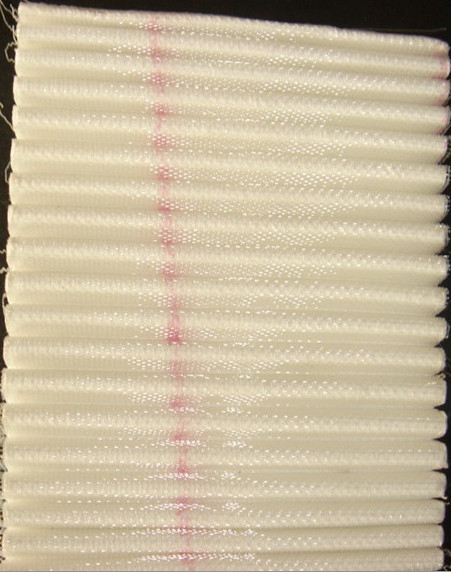

5. The machine is also suitable for folding the iron wire fabric and non-woven fabric of by hydraulic filter, even the multilayer folding.

Applications

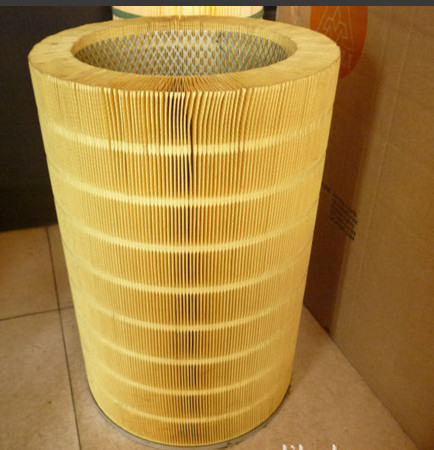

1. The production line is applied to auto Tri-filter industry, hydraulic pressure, purification and water treatment industries etc.

2. Furthermore, we can customize the paper-pleating production line of different specifications (machine width and pleat height, this pleating machine also can pleat “M” type).
