| Place of Origin: | CHINA |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO 9001 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | PLYWOODCASE |
| Delivery Time: | 30 days |
| Payment Terms: | T/T 100% before shipment |
| Supply Ability: | Engineers available to service machinery overseas |
| High Light: | filter machinery,paper manufacturing machine |
||
|---|---|---|---|

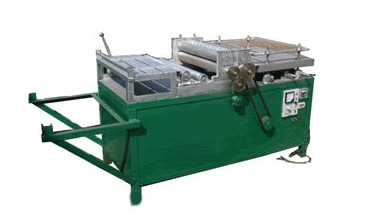

Six Roller Automatic Rotary Filter Paper Pleating Machine with Auto Counter
Consists
1. Auto Paper de-coil
2. Paper pre-slitting machine
3. Pre-heating device before pleating
4. Auto counter
5 . Rollers marking machine
6 . Roller and gear collecting machine
7 . Pleated paper heat forming and conveyer device
Specifications:
| Product capability | 0-35m/min |
| Max width | 1000mm |
| Min width | 30mm |
| Max pleat height | 50mm |
| Min pleat height: | 20mm |
| Temp. control | 0-300℃ |
| Main power | 12kw |
| Working air pressure | 0.6MPA |
| Power supply | 380V/50HZ |
| M/C weight | 750kg |
| M/C dimension | 3600*1170*1200mm |
Features
1. The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
2. This machine equips the pre-heating and water steam device to prevent the paper breaking when roller marking,
3. This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
4. The rollers can be made with bubbled type or the pleat-lock type, which is used to maintenance the certain distance between two pleats.
5. This high automatic machine has the process of the auto counting, pleating pre-heating and forming
6. This machine is computer control and simple operation.
Applications
This machine is used for pleating and forming ECO filter element.
