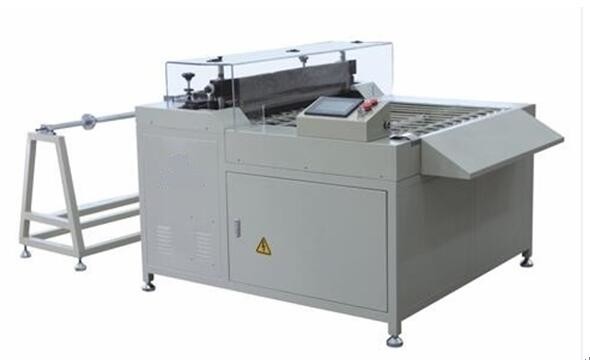

Air Filter Making Machine Auto Cutting Machine for Fabric-Bag Filter

Air Filter Making Machine ,Auto Cutting Machine for Fabric-Bag Filter

General Description

It is used for cutting the fabric-bag filter

Consists

1,Fabric placing system
2,Roll loading system
3,Moving fabric cutting system
4,Convey working table
5,Electrical control cabinet


Specification

1,Production capability:20~30m/min
2,Cutting width:≤850mm
3,Cutting length:300~980mm
4,Working air pressure:0.6MPa
5,Power supply:220V/50Hz
6,Motor power:0.8kw
7,M/C weight:300kg
8,M/C size:2100×1300×1100mm(L×W×H)


Description

Wenzhou Changjiang Filter Machine Co.Ltd the director member of China Internal Combustion Engine Industry Association Filter Branch and the member of China Automobile Manufactures Association Filter Committee, is the complete equipment enterprise specialized in producing filter manufacturing equipment, filter test equipment and molds.
