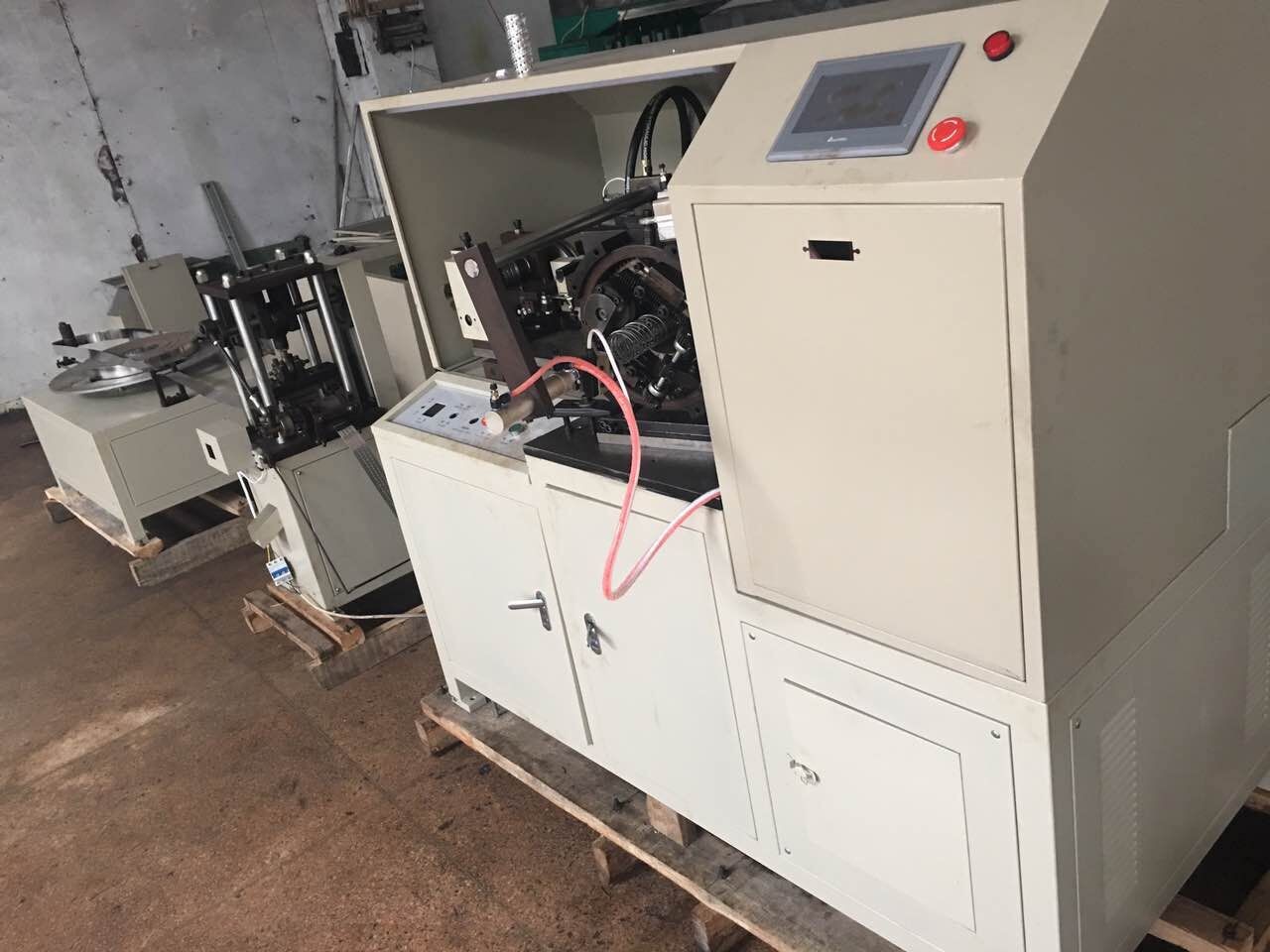

Spiral Tube Making Machine for Spin-on Filter Inner Tube

Spiral Tube Making Machine for Spin-on Filter Inner Tube

Quick Detail:

Description:

1. This Spiral Tube Making Machine to manufacture the spiral filter cores instead of traditional process.

2. The galvanized coil of the material to be entered into the Tube Making Machine, rolled to form by extrusion, seamed With high efficiency, we can save a lot of materials and reduce the production cost to manufacture the spiral filter cores by this machine.

3.Very easy and quick to change the diameter of spiral tube.

4.Any length can be cut according to customer’s requirement.

5.PLC control makes high efficient, stable quality, less procedures and materials and so reduces the production cost.

6. By adjusting clutch, the machine can be suitable for different thick materials.

Features

1.The machine can easily change the diameter of screw tube in a short time.

2.The computer control machine can save production costs and working procedures with its high efficiency,

3.Cut the needed length according to what the customers’ specification

4.Adpots hydraulic pressure drive which has strong power and good stability.

5.Clutch can be adjusted according to different thickness of the steel strip.

6.Steady quality and economical materials.

7.This cnc oil filter spiral tube making machine is specially for producing the cores of automotive filters.

Specification

1. Product capacity 20-35pcs

2. Diameter of center tube: ￠30-￠75mm

3. Length of center to be processed: freely

4. Steel-plate thickness: 0.25-0.32mm

5. Motor power: 3kw

6. Power supply: 380V/50HZ

7. Working air pressure: 0.6Mpa

8. M/C weight: 800KG

9. M/C size: 1600 × 800 × 1240mm (L × W × H)

Competitive Advantage:

- Fast speed

- High efficiency

- Spiral louvered

- PLC control tube length

- Good stability.
