| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJJY 109-500 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Material Width: | 109mm Expanded Mesh | Mesh Thickness: | 0.25-0.6mm |
|---|---|---|---|
| Diameter: | 90-500mm | Function: | Expanded Mesh Spiral Making For Air Filter |
| Tube Length: | Any Sizes | Capacity: | Adjustable |
| High Light: | pleater machine,industrial pleating machine |
||

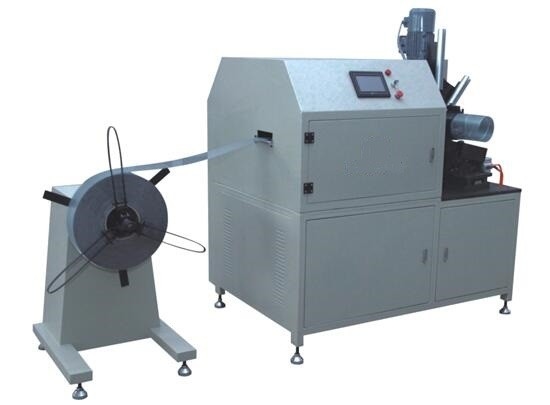

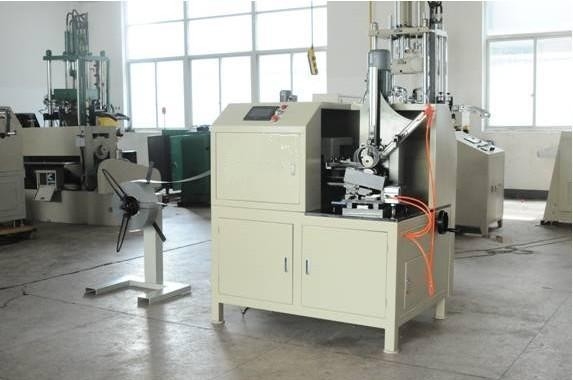

Full-Auto Wire Mesh Spiral Core Making Machine
General Description:
This machine is used to produce the inner and outer mesh for the heavy duty air filters. The ready-made wire mesh can be spirally lock-seamed to replace the traditional spot-welding method.
Main specifications:
1. Diameter range: Ф80-Ф500mm
2. Production Capacity: 10-20m/min;
3. Tube length: Cut as desired
4. Wire mesh thickness: 0.25-0.4mm
5. Perforated mesh thickness: 0.3-0.5mm;
6. Wire mesh width: 110mm
7. Motor power: 4.5Kw
8. Power supply: 380V/50Hz
9. Air pressure: 0.6Mpa
10. Machine weight: 800kg
11. Machine size: 1600mm*800mm*1240mm (L*W*H)
Features:
1. This production line is easy, cost effective and practical
2. Every diameter needs one set of moulds
3. The length can be cut according to the specific requirements
4.This machine can conveniently,quickly changing the diameter of the spiral tube.
5.According to user needs required for cutting length.
6.Suitable for different thickness of the material.
7.Using computer control,the production efficiency is high,stable quality,reduce the process,the materials used,can reduce the production cost.
