| Place of Origin: | wenzhou, China |
|---|---|
| Brand Name: | CJ |
| Certification: | CE,ISO9001 |
| Model Number: | WG-1300-II |
| Minimum Order Quantity: | 1SET |
| Packaging Details: | PLYWOOD CASES |
| Delivery Time: | 60DAYS |
| Payment Terms: | 30% T/T deposit, 70% T/T before shipment |
| Material: | Glass Fiber | M/C Frame: | Aluminium Alloy |
|---|---|---|---|
| Controller: | Panasonnic Servo Motor | Pleating Height: | 15mm-100mm |
| Power: | 380V/50HZ | Gluing: | Hotmelt |
| High Light: | filter pleating machine,air filtration equipment |
||

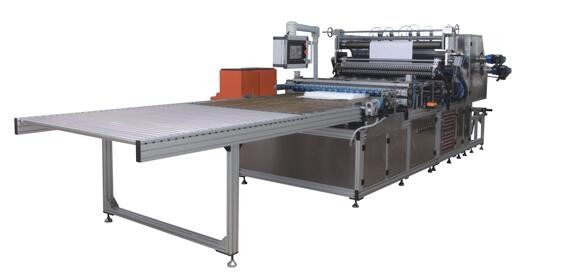

Glass Fiber HEPA Mini Pleating and Gluing Machine , Pleating Height 15mm - 100mm
Feature
1. Machine equips the cutting and trimming device, which is used to meet different filter specifications.
2. This production line is stainless steel body and aluminum frame, which is strong, nice and long life.
3. Six sets of rollers circling placed on one machine, which is easily to be changed and to meet different specifications.
4. The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.
5. High Productive efficiency and good smoothness.
6.This machine adopts automatically mechanical, electrical and pneumatic control as a whole, which is high efficiency and steady working.
7.The operation adopts the computerization control screen which is easy view and easy operation.
8.The air-bulking shaft is used when paper feeding, also equipped with the tensile force brake control system, which can control tensile force of paper feeding automatically.
9.This machine equipped with the paper edge cutting device.
10.The pleating height can be chosen freely, no need changing the rollers, the servo-control system can accurately ensure pleating neatly.
Specification
1. Max Width: 1300mm
2. Pleating Height Range 15-100mm( any six specifications among the ranges)
3. Product Speed: 25m/min
4. The Interval of Gluing: 25.4mm
5. The number of the Gluing: 2x 48 lines
6. Power Supply: 38V/50HZ
7. Main Power: 46kw
8. Working Air Pressure: 0.6Mpa
9. M/C Weight: 700kgs
10. Hotmelt M/C Dimension: 900x 1000x1500
11. Main M/C Dimension: 7500x 1050x1500
Advantage
1. Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.
2. The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
3. The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.
4. we can customize the paper pleating production line of different specifications.
5.The running speed of the machine can be regulated easily.
6.The pleating height adjusted and the front-back movement of the paper collecting system can be regulated easily and steadily.
7.The convey speed of the conveyer system is stepped by the system thought the computer regulation.
8.Easy to choose any of six gluing functions like” continuously, separately, two sides, one side, auto, manual.”
