| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJFJ-80 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 50 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Product Capability:: | 180pcs/hour | Diameter: | Adjustable |
|---|---|---|---|
| Air Pressure: | 0.6Mpa | Motor Power: | 10KW |
| Power Supply: | 380v/50hz | M/C Size: | 2800×1000×1800 |
| High Light: | Filter Machinery,Pleater Machine |
||

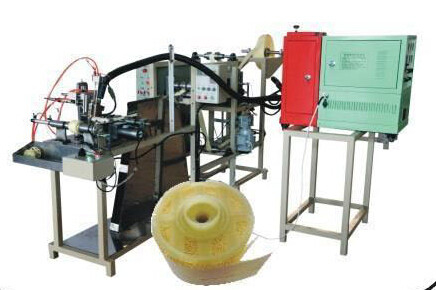

Fuel Filter Element Two Layers Compositing Coiling Machine 80~180pcs/hour
General Description
This machine is suitable for making fuel filter element.
Specification
1.Capacity:80~180pcs/h
2.Coiling Diameter:Φ50~Φ130mm
3.Coiling Width:30~90mm
4.Hoemelt Applicator:20kg
5.Hotmelt Tank Heating Power:8KW
6.Power:220V/50HZ
7.Working Air Pressure:0.6MPa
8.M/C Weight:700kg
9.M/C Size:2800×1000×1800
Feature
1.According to different coiling diameter to ajust coiling speed and coiling tightness.
2.Gluing amount, speed is controlled by frequency converter, The temperature of hose and nozzle are controlled independently.
4.The whole machine is controlled by PLC.
5.This machine has the function of automatic timing heating.
6.This machine can work for two layers fuel filter paper. One layer pleats into corrugated paper.Full-auto compositing,coiling, and counting
7.All spare parts are made in Taiwan.
Company Introduction
We are specialized in manufacturing the machines for the primary/middle/high efficiency filters, auto-oil/fuel/air filters, hydraulic pressure filter and water treatment filter.
We have developed over 150 kinds of the filter making machines and testing machines. The high techinical leading machines like full-auto HEPA air filter mini pleating production line, separated air filter paper pleating production line, full-auto knife & rotary paper pleating machine, full-auto spin-on filter assembling production line and so on.
Which are greatly favored by customers home or abroad in the filter industry. And some of them have passed the CE certificate, far export to European countries, American, and the southeast asia countries etc.
After years' development, it has been the most modern company among the competitors because of its high techinical employees, high quality machines and perfect management. With yearly output of 880sets of filter making machines.
