| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | GY-2 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 50 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Product Capability:: | 70pcs /hour | Temp.control Scope：: | Normal Temp.~300℃ |
|---|---|---|---|
| Air Pressure: | 0.6Mpa | Motor Power: | 0.3KW |
| Power Supply: | 380v/50hz | M/C Size: | 1000×1050×2500mm(L×W×H) |
| High Light: | Filter Manufacturing Equipment,Pleater Machine |
||

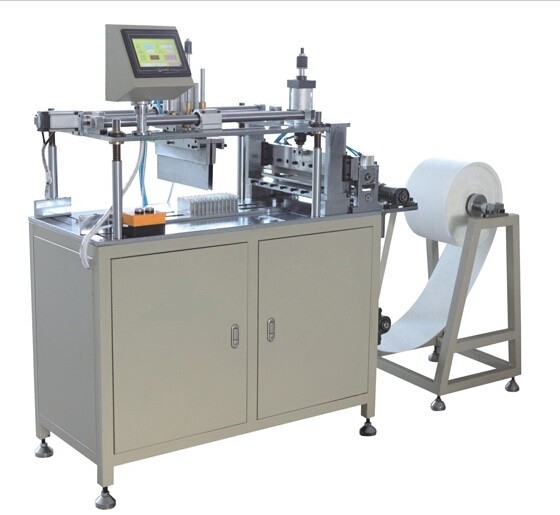

Japanese Toyota Air Filter Element Non-woven Pleats Inserting Machine
General description
The machine is mainly suitable for Toyota environmental protection air filter hot and cotton
folding..
Specification
1,Product compatibility:3psc/min
2,width of elements:380mm
3,diameter of elements:900mm
4,main power:0.46kw
5,Working air pressure:0.6mpa
6,Power supply:380v/50Hz
7,M/C size:1340×760×1470(L×W×H)
Material dimension:500×480×770(L×W×H)
8,M/C weight:200kg
Applications
1,This machine has the feeding,Cut off the,Fold the spacing,Folding length,the integration of automatic control.
2,This machine is simple with high efficiency.
Company Introduction
We are a professional filter machine manufacturer in China since 1985. We produce about 150
kinds of filter machines for oil, fuel and air filters. All our machines with best quality and reasonable prices.
Since the establishment, it has pursued the quality policy: "innovative design and elaborate, one promise and full service", perseveringly who would furnish the customers with best products and service.
