| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | GT-600 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Product Capability: | 35m/min | Max Width: | 600mm |
|---|---|---|---|
| Min Width: | 30mm | Max Pleat Height: | 50mm |
| Min Pleat Height: | 20mm | Temp. Control: | 0-300℃ |
| Main Power: | 12kw | Working Air Pressure: | 0.6MPA |
| High Light: | filter pleating machine,hepa filter machine |
||

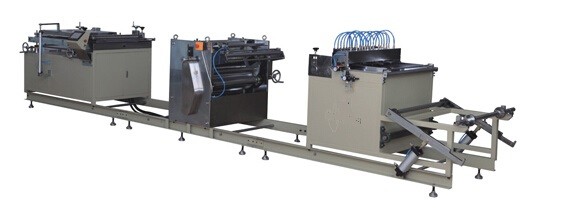

Custom Made Oil Filter Rotary Pleating Machine
Quick Detail:
1. Auto Paper de-coil
2. Paper pre-slitting machine
3. Pre-heating device before pleating
4. Auto counter
5. Water steam device
6. Rollers marking machine
7. Roller and gear collecting machine
8. Pleated paper heat forming and conveyer device
9. 600mm machine width
Features
1. Rotary type pleating machine is a type of pleating machine designed for high speed production.
Specifications:
| Product capability | 0-35m/min |
| Max width | 600mm |
| Min width | 30mm |
| Max pleat height | 50mm |
| Min pleat height: | 20mm |
| Temp. control | 0-300℃ |
| Main power | 12kw |
| Working air pressure | 0.6MPA |
| Power supply | 380V/50HZ |
| M/C weight | 750kg |
| M/C dimension | 3600*1170*1200mm |
Applications
This machine is used for pleating and forming ECO filter element.
