Full-auto Cabin Filter Element Edge Bonding Machine

Basic Information

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJHZ-500

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment
Supply Ability:	Engineers available to service machinery overseas

Get Best Price Contact Now

Detail Information

Function:	Cabin Filter Edge Strip Bonding	Gluing Length:	Max 500mm
Strip Width:	45mm	Hot Melt Tank:	10L
Roll Diameter:	580mm	Material:	Non-woven
High Light:	Filter Manufacturing Equipment , Pleater Machine

Product Description

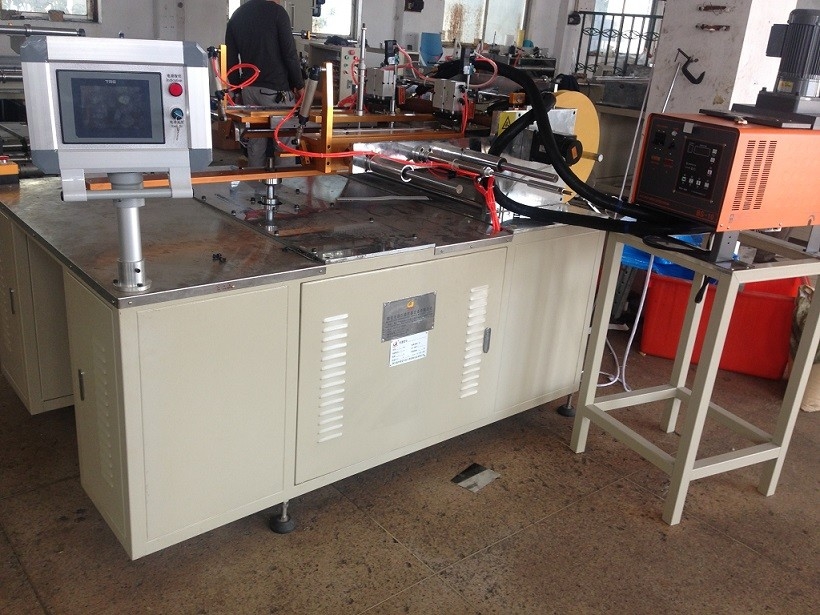

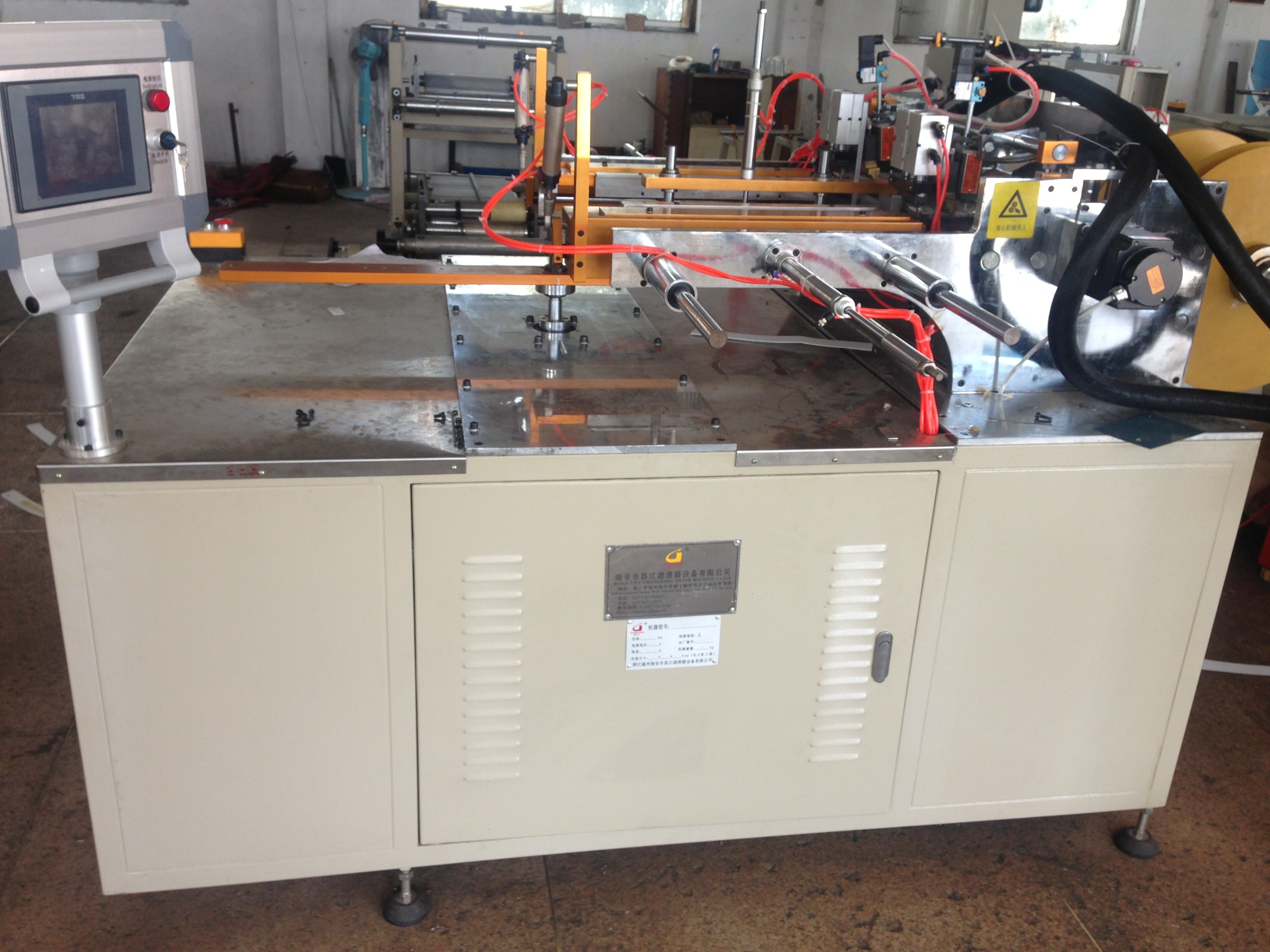

Full-auto Cabin Filter Element Edge Bonding Machine

Introduction

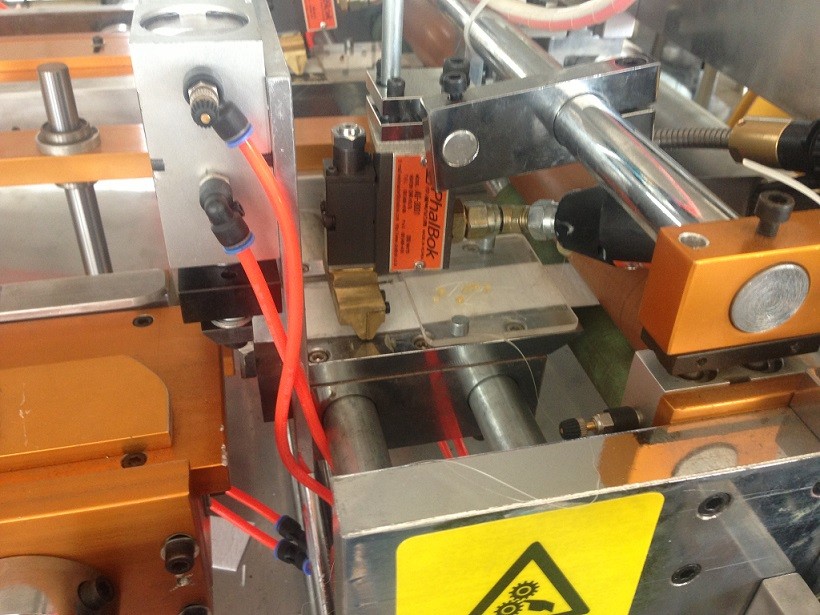

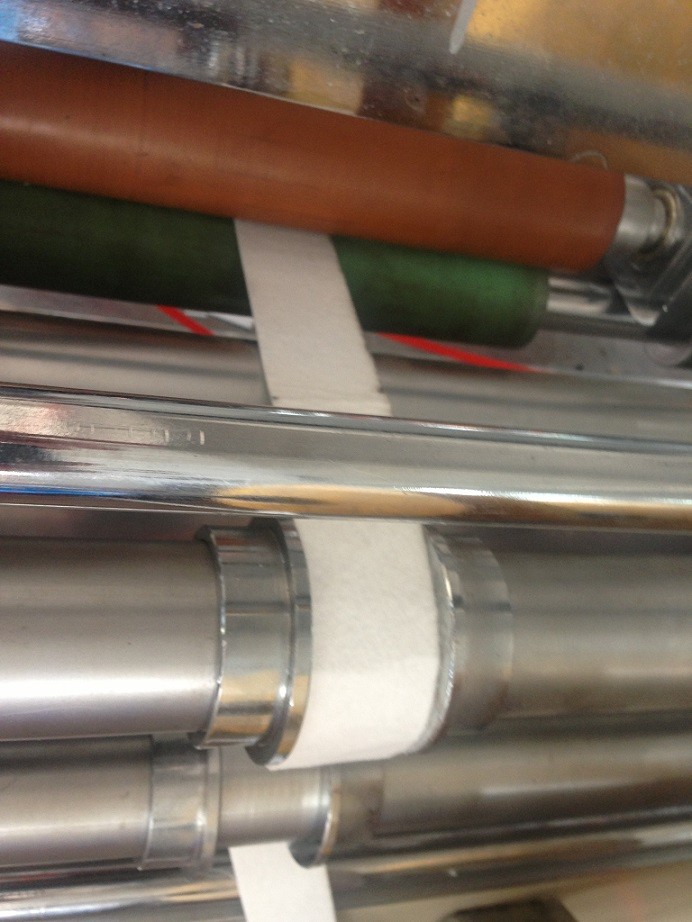

1. This machine is applicable for coating and bonding the hot melt glue on the edge strip of automobile cabin filter element.

2. After dispensing the hot melt glue on the edge strip, manually bond it, featuring simple operation and easy adjustment.

Specifications

Maximum effective length for hot melt glue coating: 500mm

Maximum effective width for hot melt glue coating: 45mm

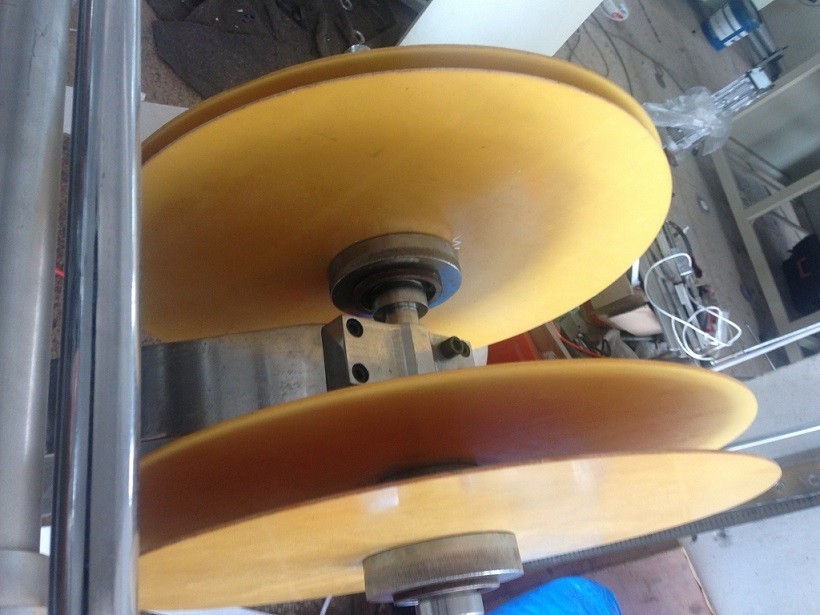

Maximum diameter of edge strip roll: Φ580mm

Volume of hot melt applicator: 10L

Working air supply: 0.6MPa

Total power: 3.3KW

Working power supply: 380V 50Hz

Dimension: 2000mmx1130mmx2000mm

Weight: 450kg
