| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJJY 109-500 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Material Width: | 109mm Expanded Mesh | Mesh Thickness: | 0.25-0.6mm |
|---|---|---|---|
| Diameter: | 90-500mm | Function: | Expanded Mesh Spiral Making For Air Filter |
| Tube Length: | Any Sizes | Capacity: | Adjustable |
| High Light: | Filter Machinery,Pleater Machine |
||

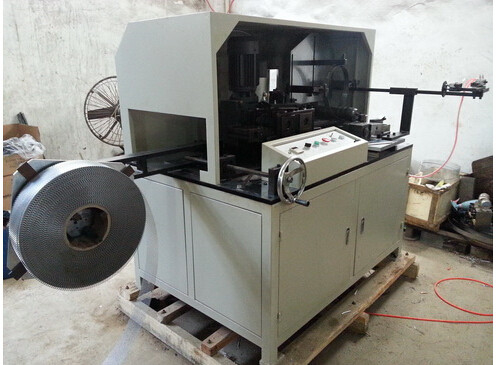

Full-Auto Wire Mesh Spiral Core Making Machine
General Description:
This machine is used to produce the inner and outer mesh for the heavy duty air filters. The ready-made wire mesh can be spirally lock-seamed to replace the traditional spot-welding method.
Main specifications:
1. Diameter range: 90-350mm or customized
2. Production efficiency: 8-12m/min;
3. Tube length: Cut as desired
4. Wire mesh thickness: 0.25-0.6mm
5. Perforated mesh thickness: 0.3-0.5mm;
6. Wire mesh width: 110mm
7. Motor power: 4.5Kw
8. Power supply: 380V/50Hz
9. Air pressure: 0.6Mpa
10. Machine weight: 800kg
11. Machine size: 1600mm*800mm*1240mm (L*W*H)
Features:
1. This production line is easy, cost effective and practical
2. Every diameter needs one set of moulds
3. The length can be cut according to the specific requirements
