| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJJY 109-500 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Function: | Big Mesh Spiral Making | Mesh Thickness: | 0.35-0.8mm |
|---|---|---|---|
| Diameter: | 90-500mm | Mesh Length: | Any Sizes |
| Material: | Stainless Steel | Width Of Strip: | 65mm |
| High Light: | Filter Machinery,Pleater Machine |
||

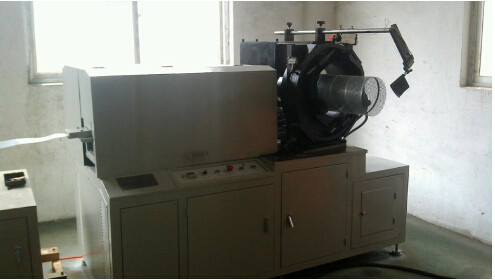

Round Air Duct Spiral Tube Making Machine Rotary Pleating Machine Customized
Quick Detail:
| Type | Oil Filter Tube Making Machine |
| Applications | For oil, fuel filter tube |
| Package | Standard Export Plywood cases |
| Certificate | CE ISO 9001 |
| After-Sales service | Engineers available to service machinery overseas |
| Delivery Time | 30 days after got Your down payment |
| Payment Term | 30% T/T payment in advance, 70% T/T payment before shipment |
Description:
This machine line is for producing round air duct for various uses, such as for HVAC round ducts, oval ducts, chimney flue, Oil filter etc.
Advantages
1.1 Special mould for various tube diameters, very easy to change and adjust, no needs crane or too much manpower.
1.2 Large diameter range
1.3 High speed synch flying slitter system.
1.4 PLC computer control, convenient operation
1.5 Light and small, suitable for site work.
Specification
2.1 Diameter of round tubes: 150mm ~ 500mm.
2.2 Max. Tube length: Unlimited.
2.3 Thickness of strip: 0.35 ~ 0.8mm
2.4 Width of strip: 65mm
2.5 Strip speed: 1~40m/min, adjustable
2.6 Suitable strip material: Aluminum, stainless steel, galvanized steel, etc.
2.7 Dimension: 2350mm x 2200mm x 1280mm
2.8 Weight: 1500kg
2.9 Power of main motor: 5.5kw, 380Volt, 50Hz/ 230V, 60Hz
