| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJF-1100 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Supply Ability: | Engineers available to service machinery overseas |
| High Light: | industrial pleating machine,air filter manufacturing equipment |
||
|---|---|---|---|

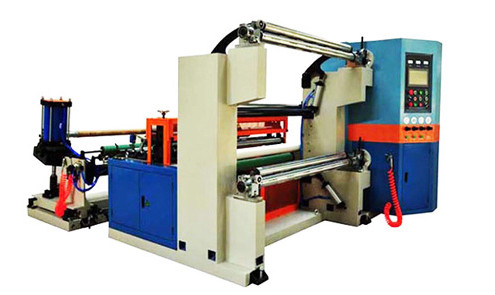

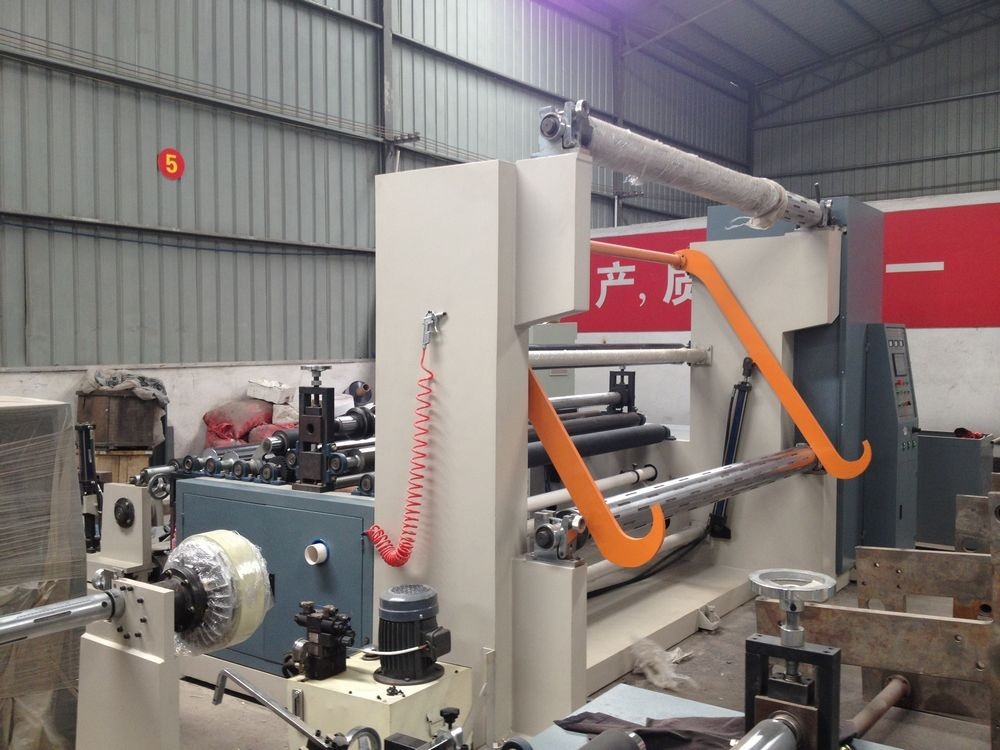

High Efficiency Automatic Paper Slitting Rewinding Machine , 2400mm Width
Applications:
1. This machine is the specialized machine for slitting filter paper, nonwoven and other media.
2. It is equipped with photoelectric detection deviation correction device and manual deviation correction roller. Slitting speed is controlled by photoelectric sensor with steeples speed regulation.
3. It features high production efficiency, stable performance, regular cut and smooth winding up.
Specifications:
1.Max. Parent Web Width 2400mm
2.Max. Parent Web Diameter 1000mm
3.Max. Rewinding Diameter 1000mm
4.Min. Slitting Width Disc Type Blade: 200mm(according to the paper thickness)
5.Thickness Range Paper 40-500gsm
6.Max. Machine Speed 300m/min
7.Unwinding/Rewinding Shaft 6” Pneumatic Air Expanding Shaft
Feature:
1.Equipped with Siemens PLC and 7" touch screen. All the parameters are displayed on the monitor. 7" size screen gains a clear & better visual effect. Only material roll diameter and thickness needs to be setup, the PLC will give proper parameters for machine running automatically.
2.Equipped with two sets of Siemens brand Inverter Motor with bar code, one for material feeding, another for tension control.
3.Equipped with two sets of YASKAWA brand Frequency Inverters control the motors. One for material feeding, another for tension control.

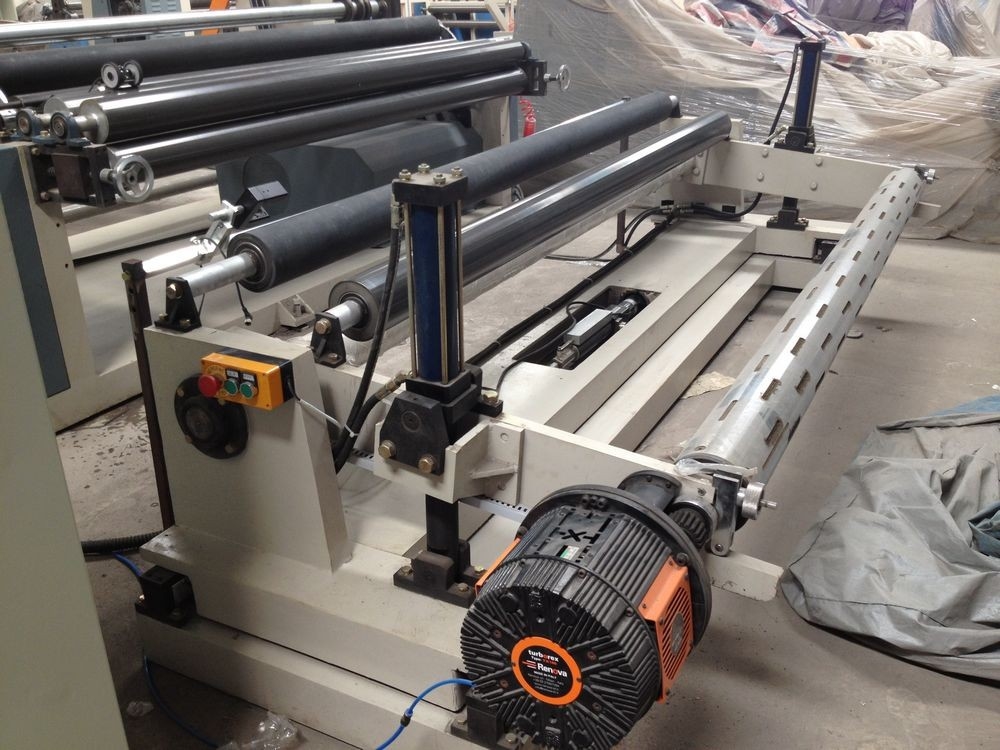

4.Equipped with automatic lift-up loading system for heavy material roll loading.The Max loading weight is around 3000kg.
5.Equipped disc type blade.
6.the disc type blade for thick material like paperboard.Min slitting width is 200mm
7.The Disc Cutter Assembly adopts the cam self-locking device without s screw. The parts are in CNC processing. The cutter edge material is 9Crsi with high endurance.
Machine Merits:
1.Equipped with automatic meter counter which will stop the machine when reach the pre-set length.It is planted in the PLC.
2.Equipped with pneumatic Brake for the unwind and two sets of magnetic clutch for rewind.
3.Equipped with you Dao ultrasonic EPC web guide for tracking the edge.
Three sets of auto tension control system are implanted the PLC, convenience operation.
4.All transmission rollers have been dynamic/static balance treated.
5.Equipped with air blower and expulsion tube.
6.Equipped with emergency switch.
7.With meter counter. Got to the setup data, the machine stops and alarms.
8.Equipped with 0.55Kw air blow for waste material edge trimmer.
9.All the electric appliances have been gained the CE certificate.
