| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJGS-6 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | Filter Machinery,Pleater Machine |
||
|---|---|---|---|
3 HP Oil Filter Making Machine , Bottom Plate Tapping Machine Diameter Φ55 - Φ110 mm
Specification
1. Product Capacity : ~ 30 pcs / min
2. Available Product Out Dia : Φ55 ~ 110 mm
3. Tap Size : M 18 ~ M 26
4. Available Thickness : 1.0 ~ 4.2 mm
5. Power Tapping Motor : 3 HP
6. Oil tank volume : Max 30 Liter

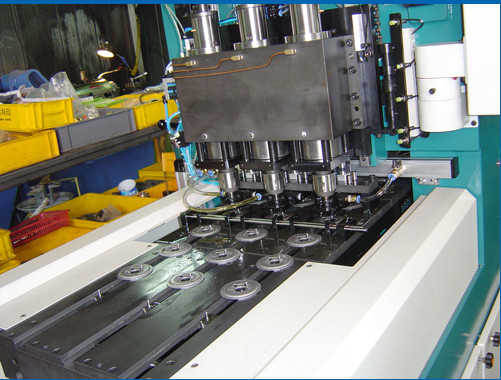

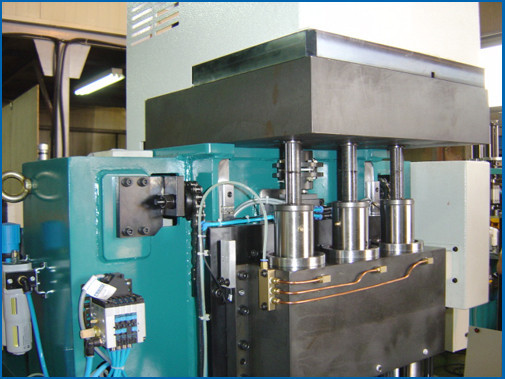

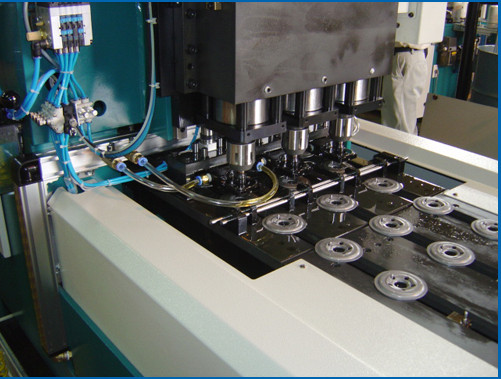

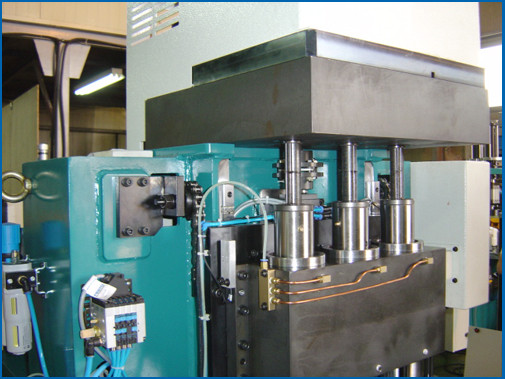

7. Tapping : 1 Head with 3 Spindles
8. Right Angle Tolerance : Less than 0.25 mm
9. Electric Power : 380V x 50Hz x 3P
10. Machine Size : (W)2,000 x (L)2,500 x (H)1,800
11. Machine Weight : 1,800 Kg
Feature
1.Work in a whole to ensure the work piece vertical to the screw top.
2.The machine adopts multistage reduction device and work with six axis, which has well-knit structure,Smooth work and high efficiency.
3.The tapping part sets the spray cooling system which can keep the work piece smooth and durable.
4. The model produces no chips at tapping process to assure the precise operation.
5. Manual loading & auto unloading system
6. Auto Safety stop device installed.
7. Electric product counting device.
8. R-Plate rectangular holding device included.

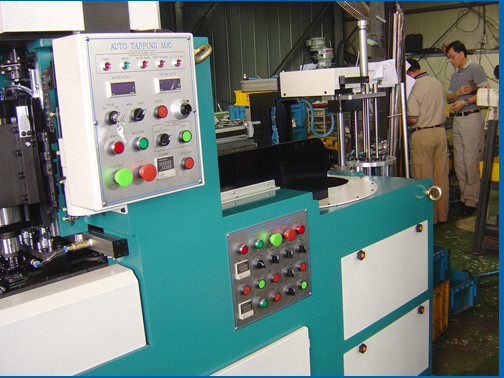

9. P.L.C program control system
10. De Oiling Machine is Included And, De Oiling Process is also Full Automatic
Applications
1.It is mainly used for tapping the bottom plate of oil and fuel filters.
2.The model bores the center hole of the bottom plate of cartridge type filters by a special screw
3.It is fully automatic system : Manual loading -- Auto tapping - Auto moving to De Oiling - Auto unloading
