| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJPF-2 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | Filter Machinery,Air Filter Manufacturing Equipment |
||
|---|---|---|---|

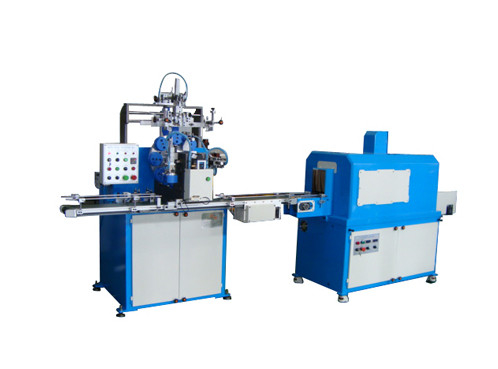

Electric Auto Silk Printing Machine For Spin On Filter Ф60 - Ф100mm
Specification
1. Product Capacity : 30 ~ 50 pcs / min
2. Available Filter Dia : Φ 55 ~ 100 mm
3. Available Length : 60 ~ 140 mm
4. Power Air Pressure : 6kg/㎠
5. Electric Power : 380/220V x 50/60Hz x 3P
6. Main Motor : 0.4 kw (Inverter)
7. Printing Color : One Color
8. Printing Ink Consumption : 0.85 g/min
9. Air Consumption : 1.2 litter/min
10. Machine Size : (W)900 x (L)1,200 x (H)1,500
11. Machine Weight : 500 Kg
Features
1. P.L.C Program Control System
2. Printing design change is very easy.
3. The printed ink on the filter body is indelible through the normal drying process.
4. To be capable of two colors printing on the saparately.
5. Full Automatic Loading & Unloading System.
Application
1.This machine is printing the maker's Brand & Logo Or any other notice on the body of the Finished
2.Catridge Type Filter by Printing Designed Silk Pad
