| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJAT-2S |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | Filter Machinery,Air Filter Manufacturing Equipment |
||
|---|---|---|---|

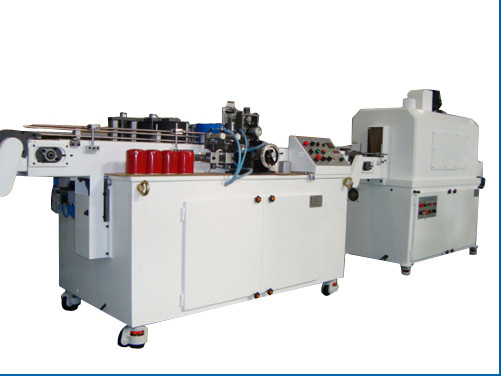

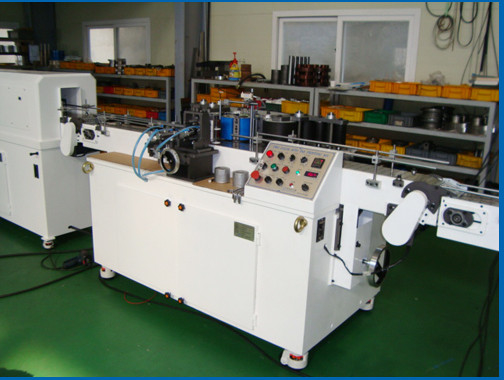

PLC Program Control Auto Two Colors PAD Printing Machine With 4 Wheel
Application
1.This Machine is printing the maker's Brand And Logo or any other notice on the body of Finishe Catridge
2.Type Filter by Printing Designed Special Rubber Pad
Features
1. P.L.C Program Control System
2. Automatic loading & unloading system
3. Aluminum Frame & 4 wheel
4. Special Designed Cam System
5. It adopts speical rubber pad, so it will be used permanently.
Spcification
1. Capacity : ~ 45 pcs/Min
2. Available Filter Dia : 60 ~ 110 mm
3. Available Filter Housing Height : 65 ~ 170 mm
4. Available Printing Height : 40 ~ 100 mm
5. Printing Color : 2 Colors type
6. Air Pressure : 6 Kgf/ ㎠
7. Electric Power : 220 / 380V x 50/60Hz x 3P
8. Machine Size : (W)1,100 x (L)2,400 x (H)1,500
9. Machine Weight : 500 Kg
* OPTION : U.V DRY OVEN After Pap Printing
