| Place of Origin: | wenzhou,China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE,ISO9001 |
| Minimum Order Quantity: | 1SET |
| Payment Terms: | 30%T/T deposit, 70% T/T balance payment |
| High Light: | Filter Manufacturing Equipment,Pleater Machine |
||
|---|---|---|---|

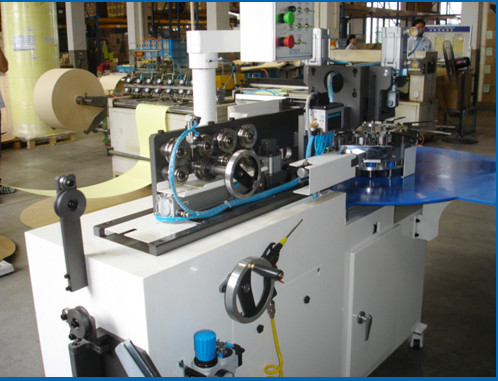

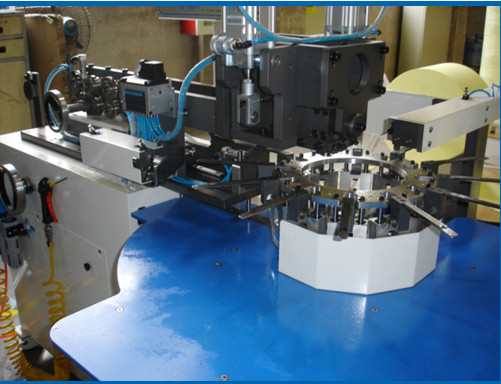

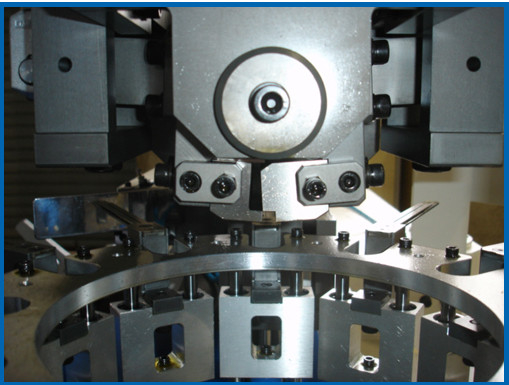

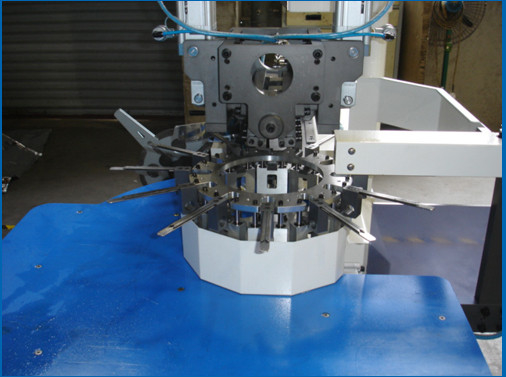

Custom 0.6Mpa Hot Melt Filter Clipping Machine , CE / ISO 9001 Certificate
Specification
1. Product Capacity : ~ 32 pcs/Min
2. Available Length : 50 ~ 200 mm
3. Available Height of Paper : 12.0 ~ 20.0 mm
4. Thickness of Steel : 0.25 mm ~ 0.55 mm
5. Available Steel Width : 10 mm
6. Power Air Pressure : Min 6kg / ㎠
7. Electric Power : 220V / 380V x 60Hz x 3P
8. Paper Thickness : 0.25 mm ~ 0.55 mm
9. Machine Size : (W)1,300 x (L)500 x (H)1,000
10. Machine Weight : 200Kg
Application
This machine is made for the production of filter elements for automobiles in addition to a function that files both edges of filter paper with steel clips.
Features
1. The machine automatically processes the next stage of work when filter paper is put in.
2. Steel bonding prevents finished elements from leaking.
3. Steel is embossing treated to prevent peeling of separation that occur from high pressure.
4. Folding and bending of filter paper in length and height are easily changeable.
5. Machine elements and necessary parts are safeguarded by speciality steel to prolong the machine life.
6. It is multi insert type
