| Place of Origin: | wenzhou,China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE,ISO9001 |
| Minimum Order Quantity: | 1SET |
| Payment Terms: | 30%T/T deposit, 70% T/T balance payment |
| Name: | Hotmelt Filter Paper Clipping Machine | Function: | Paper Bonding |
|---|---|---|---|
| Speed: | 30pcs/min | Available Filter Length: | 40 ~ 200 Mm |
| High Light: | Filter Manufacturing Equipment,Air Filter Manufacturing Equipment |
||

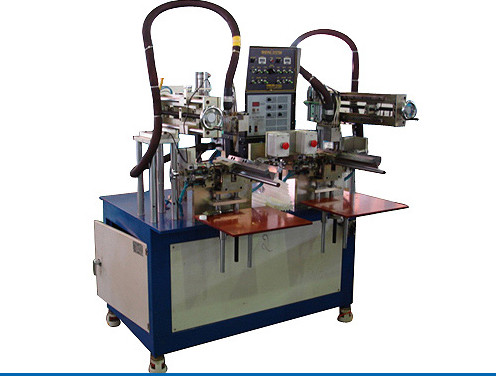

Hot Melt Filter Paper Clipping Machine / Bonding Machine 30pcs / min
Application
1)This machine is designed to bind to filter paper
2) filter paper by Hot Melt Glue Automatically.
3)Its efficiency is very high
4)Quality is the Best one
Features
1. P.L.C Program Control System
2. P.L.C Control System is adopted to make M/C Smoth operating as programmed.
3. Two Lines System for fast working processing
Specification
1. Product Capacity : 15 ~ 30 pcs/min
2. Available Filter Length : 40 ~ 200 mm
3. Available Filter Height : 10 ~ 50 mm
4. Available Paper Thickness : 0.4 ~ 1.2 mm
5. Air pressure : 6 kg/㎠
6. Electric Power : 380V x 3P x 50Hz
7. PLC Control System
8. Feeding Air Cylinder Control System
9. Hot Melt Applicator TEMP : 100 ~ 220℃
10. Adhesive of Melt Volume : 20 Liter
11. Machine Size : (W)2,300 x (L)1,500 x (H)1,900
12. Machine Weight : 1,300 kg
