| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJCZ-1050-II |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| Name: | Rotary Pleating Machine | Application: | For ECO Filter |
|---|---|---|---|
| High Light: | Filter Manufacturing Equipment,Air Filter Manufacturing Equipment |
||

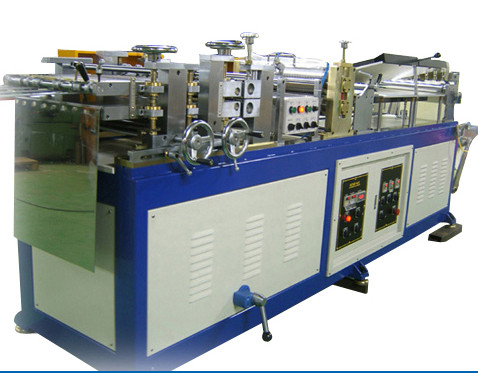

2.25 KW Rotary Pleating Machine Air Filter Making Machine with Marker
Application
1.This Machinery Pleats the Filter Paper by Invertor Control System, so it can produce paper pleating
2.Regually & Easy to Cotrol Produce Speed.
3.Hence, this machine is good for Producing Various Size Item.
Feutures
1. Inverter Control System
2. It can remain regular pleating condtion
3. It has a ruler of paper height so worker can change Pleat Height very easily
4. It attaches a Paper Roll Auto Insert system. So, It can be change roller very easily
5. Air Cutter is attached on Slitting M/C So, after pleating Air cutter cut paper regular size
6. It must change Rollers by Each Size of Height
Specification
1. Product Capacity : ~ 50 m/min
2. Available Paper Height : 11 ~ 60 mm
3. Available Paper Thickness : 0.40 ~ 1.20 mm
4. Available Paper Width : 60 ~ 460 mm
5. Power Motor : 2.25 kw
6. Power Heater : 6kw(Up & Down Plate ) 0~200℃
7. Air Pressure Use : 6 kgf/㎠
8. Electric Power : 380/220V x 50/60Hz x 3P
9. Machine Size : (W) 1,000 x (L)5,500 x (H)2,200
10. Machine Weight : 1,500 Kg
