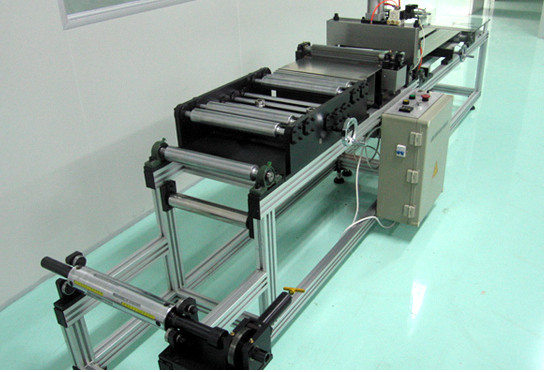

Automatic Air Filter Making Machine Simple for Corrugating Aluminum Foil

Model 300 Corrugating Machine

Application and production process

The corrugating machine is mainly used for corrugating aluminum foil to be separator in filter. Machine frame mainly with aluminum alloy ensures the accuracy and easy adjustment. Ergonomic design makes roller changing and operation convenient. The machine may produce paper separator with optional the module for paper corrugating.

Production process

Turn on the tension →Edges turn-up→ Media to be corrugated→ Measure size and cut automatically→ Collection..

Machine Components

1,Media roll control system: Including air bulking roller and tension brake control system. The process and product quality are very steady.
2,Media Entrance to corrugate: Several rollers to provide tension and make foil flat.
3,Edge turn-up unit: Foil edges are doubled in order to make the edges stronger and not sharp.
4,Corrugating roller unit: Roller unit replaceable and the different specification are available.
5,Length measurement and cutting: Pneumatic cutting and photoelectric size measurement, high accuracy and speed.
6,Product collection: Sensor detect and automatic collection.
7,Electric system: Cabinet and panel, speed control, length measurement, counting…
8,Pneumatic system: Cutting and collection control

Specification

1,Material of Aluminum foil                       semi hard and smooth

2,Max. Diameter of foil Roll                       600mm

3,Max. Width of foil Roll                             300mm

4,Thickness of foil                                      0.04±0.005mm

5,Crimping height:                                     customer demand

6,Finished product length                         250～600mm

7,Max. Speed                                              20pcs/min (length: 500mm)

8,Compressed air                                    0.6m³/min

9,Profile Size (L×W×H)                          3400mm×730mm×1030mm
