| Place of Origin: | wenzhou,China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE,ISO9001 |
| Model Number: | CJHL-2 |
| Minimum Order Quantity: | 1SET |
| Packaging Details: | PLYWOOD CASES |
| Delivery Time: | 30DAYS |
| Payment Terms: | 30%T/T deposit, 70% T/T balance payment before shipment |
| High Light: | Filter Manufacturing Equipment,Pleater Machine |
||
|---|---|---|---|

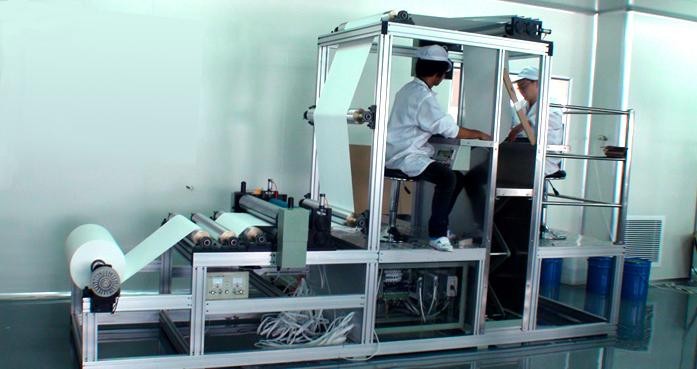

Digital Air Filter Making Machine For Separator Filter With Separator Fabricating Equipment
Features:
1.NC system, No limit for depth of the filter pack.
2.Satisfied appearance of the produced filter.
3.Digital screen operation
Specification:
1 The machine can produce all kinds of separator filter.
2 3 kinds of pleat distance are designed on one pair of imprinting roller.
3 Adjustable running speed according to operator’s need.
|
Model 800 Production Line for Separator Filter |
|
|
Profile |
The folding machine adopts mechanical,electrical and pneumatic control as a whole, high efficiency,operate easily,running stable and reliable,Widely be used to manufacture all kinds of separator filters of glass fiber media. |
|
Machine Components |
1,Media roll control system: Including air bulking roller and tension brake control system. Specific design ensures consistent tension so that the process and product quality are very steady. 2,Imprinting unit: One pair of imprinting roller and adjustment unit, imprinting roller are unique design to ensure the pleats good look and no damage. 3 kinds of pleat distance are put together on one pair of imprinting roller. Not necessary to change rollers. 3,Media pulling and size control :Two pairs of synchrony pulling rollers and size control system. Accurate control system makes quality product. 4,Product holding unit :Product holding table with Pneumatic control, convenient for operator to adjust the height of table at any time. . |
|
Specification |
1,Pleat Height 50—300mm 2,Max. Width of Media Roll 800mm 3,Max. Diameter of Media Roll 600mm 4,Max. width of Filter pack 800mm 5,Operation Speed 7pleat/min 6,Max. Length of Filter Pack 1000mm 7,Profile Size (L×W×H) 3900mm×2200mm×2400mm |
