8mm - 55mm Filter Pleating Machine For One-Layer / Multi-Layered Filter Media Pleating

Basic Information

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJCZ55-600-II

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment

Get Best Price Contact Now

Detail Information

High Light:

filter paper pleating machine

Pleater Machine

Product Description

8mm - 55mm Filter Pleating Machine For One-Layer / Multi-Layered Filter Media Pleating

Product Description

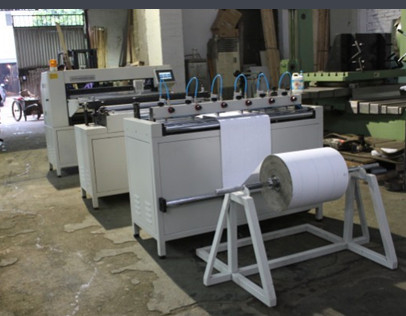

1. Decoiler 2. Slitting machine 3. Marking machine 4. Pleating Machine

1)This type of machine is capable for one-layer or multi-layered filter media pleating.

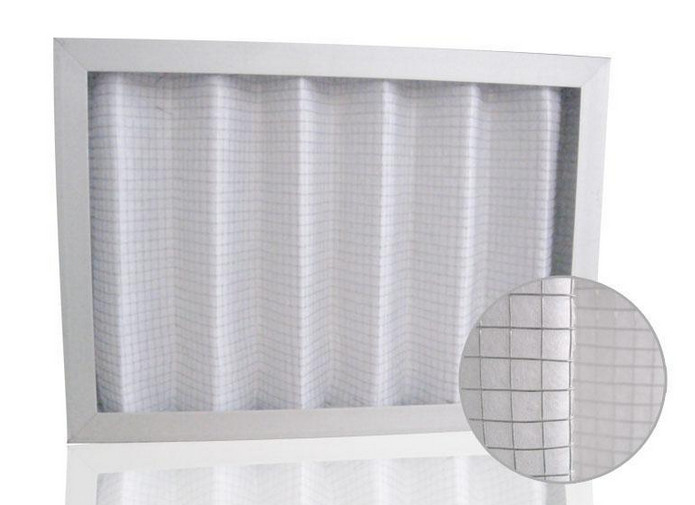

2)It is well designed for filtration media, i. E, impregnated filter paper, glass fiber (HEPA Filters) synthetic media, various types of stainless steel wire mesh as well as combination of fabric and wire mesh duly stitched together.
3)It can also pleat paper card board, copper, aluminium and other metallic foils as may be required.

SLITTING MACHINE 1100 Type

1. Paper feeding speed: 0.5 - 12m/min
2. Width available: 35 - 1100mm
3. Power: 0.75KW 380V
4. Machine weight: 400KG
5. Machine dimension: 1250mm x 680mm x 1120mm

MARKING MACHINE 1100 Type

1. Marking height: 8 - 55mm
2. Width maximum: 1050mm
3. Power: 1.5KW 380V
4. Machine weight: 450KG
5. Machine dimension: 1500mm x 850mm x 1200mm

PLEATING MACHINE 1100 Type

1. Pleating height: 5 - 55mm (or 15 -120mm)
2. Layers pleated: 1 - 5 (Light type and strengthened type)
3. Pleating speed: 20 - 150 pleats/min
4. Max. Pleating width: 1100mm
5. Thickness of material: 0.5 - 3mm
6. Speed adjustable motor: 1.5KW
7. Power: 1.5KW 380V Heater Power: 3KW Heat Temperature: 160° C
8. Machine weight: 730KG
9. Machine dimension: 1430mm x 1550mm x 1400mm

8mm - 55mm Filter Pleating Machine For One-Layer / Multi-Layered Filter Media Pleating
