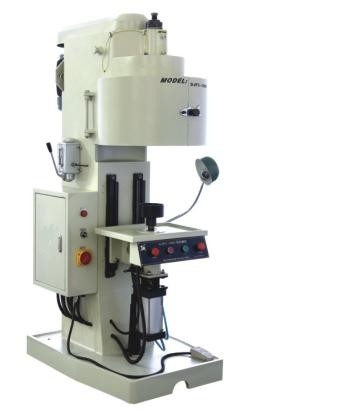

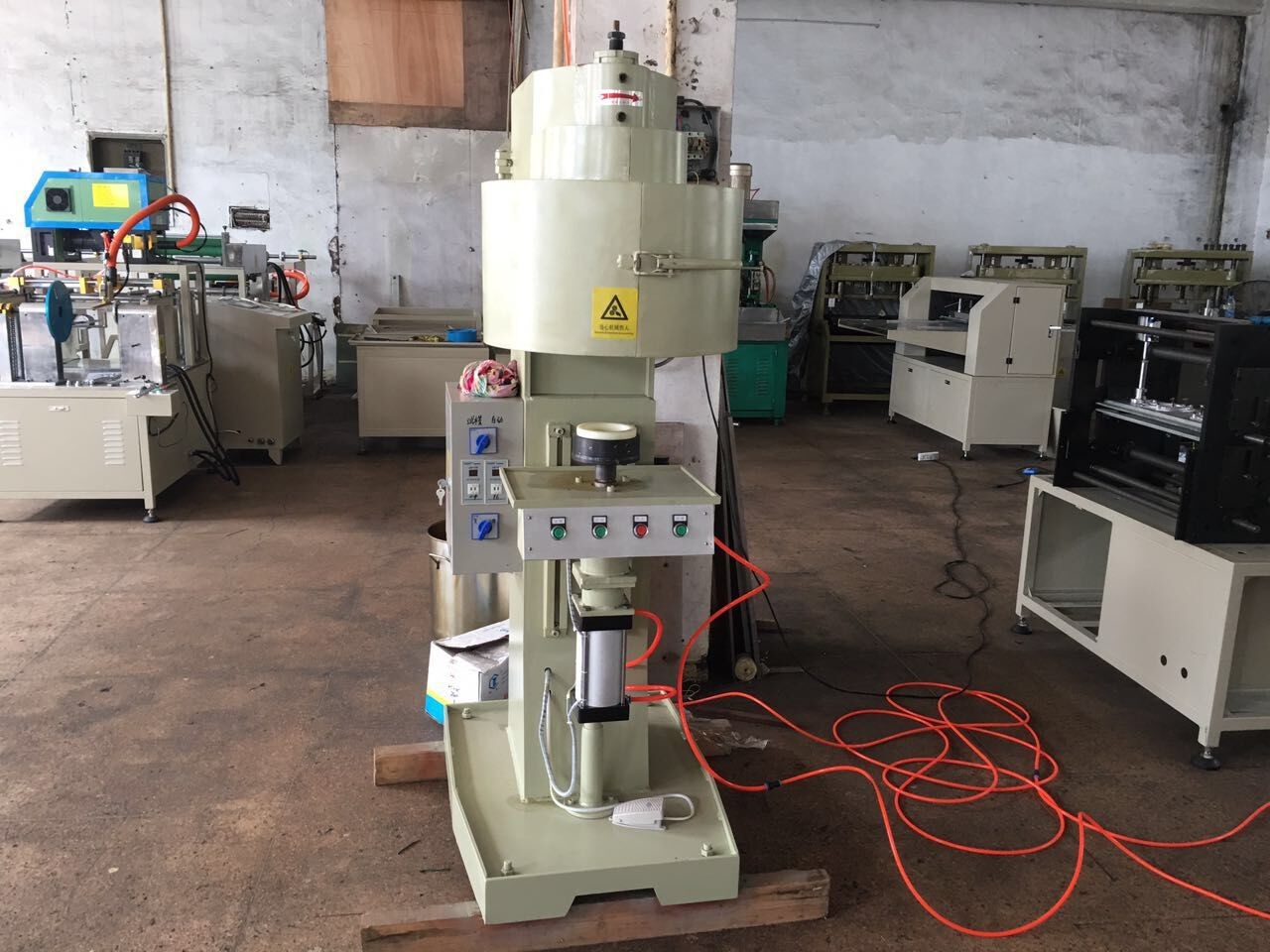

Industrial 2.2KW Oil Filter Making Machine / Seaming Machines Customized

Industrial 2.2KW Oil Filter Making Machine / Seaming Machines Customized

Specification

1. Production capacity: 12cans/min
2. Sealing diameter: ￠50-￠130mm
3. Sealing parts assembly height: 50-300mm
4. The thickness of the plate: 0.5-0.8mm
5. Motor Power: 2.2kw
6. working air pressure: 0.6Mpa
7. Power supply: 380V/50Hz
8. M/C weight: 600KG
9. M/C size: 860×640×1750mm

Feature

1. Loading and unloading of the processing port will be done by the pneumatic part that is controller by the pre-determined program.
2. The sealing wheel uses cr12mov of high as-quenched hardness and fine wear resistance to lengthen the service life.
3. Adopts manual mode by pressing the button in favor of the operator’s security.
4. Electric and pneumatic controls are used by the seaming machine. . The feed movement is carried out for the first roller and second roller by two sets of cam mechanics.

Applications

   The machine is professional used to seal the shells of rotary type and fuel filter with sealing back plate.
