| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJPQ-120 |
| Minimum Order Quantity: | 1 SET |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | Filter Machinery,Pleater Machine |
||
|---|---|---|---|

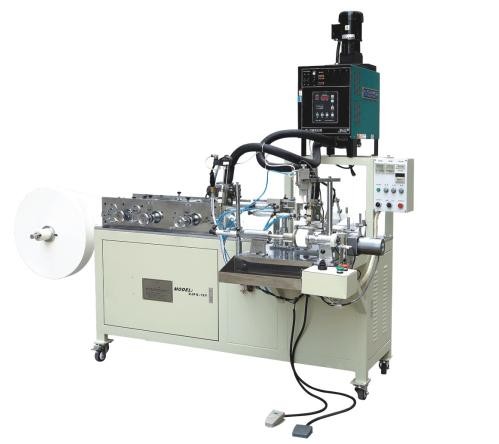

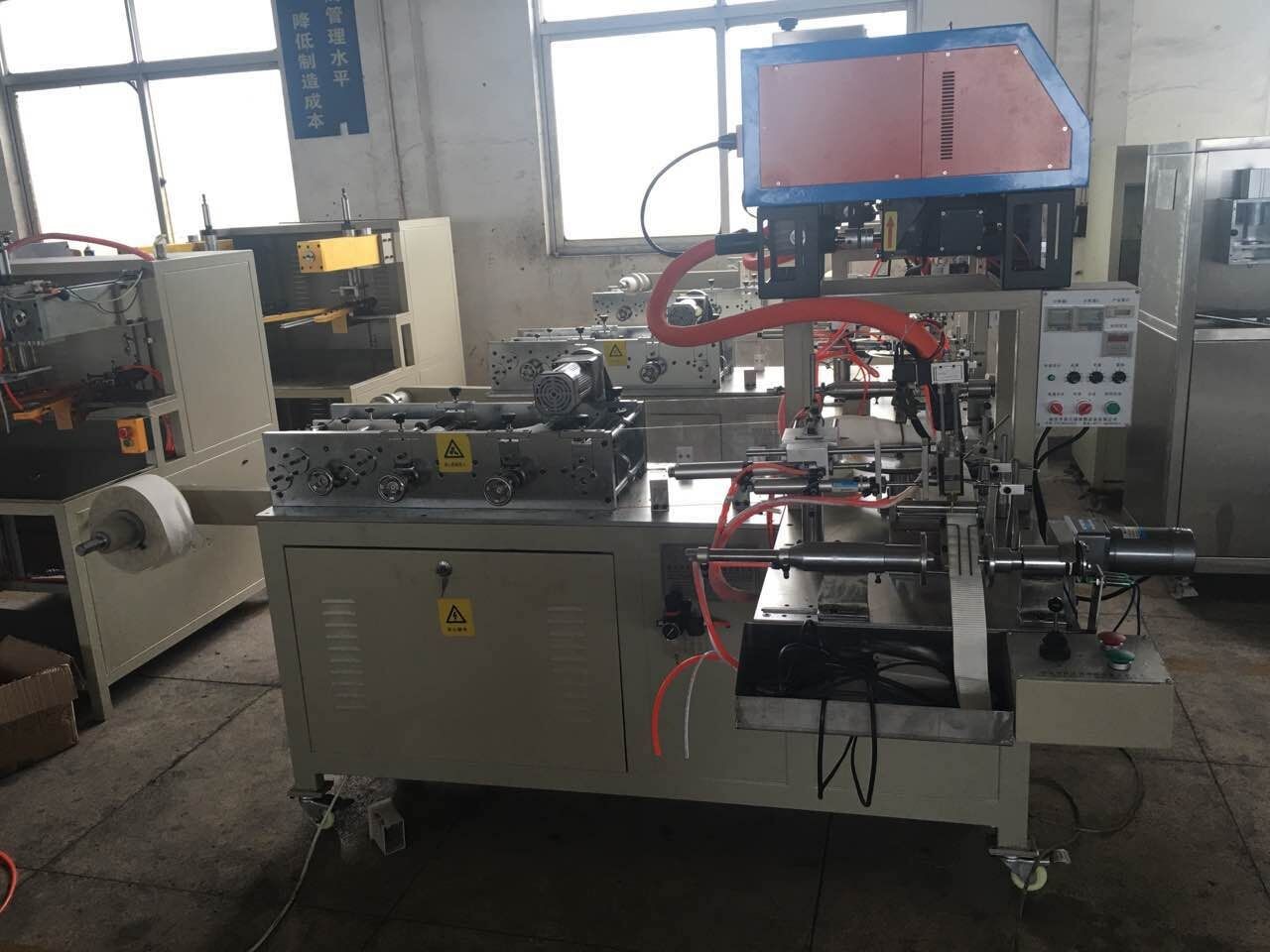

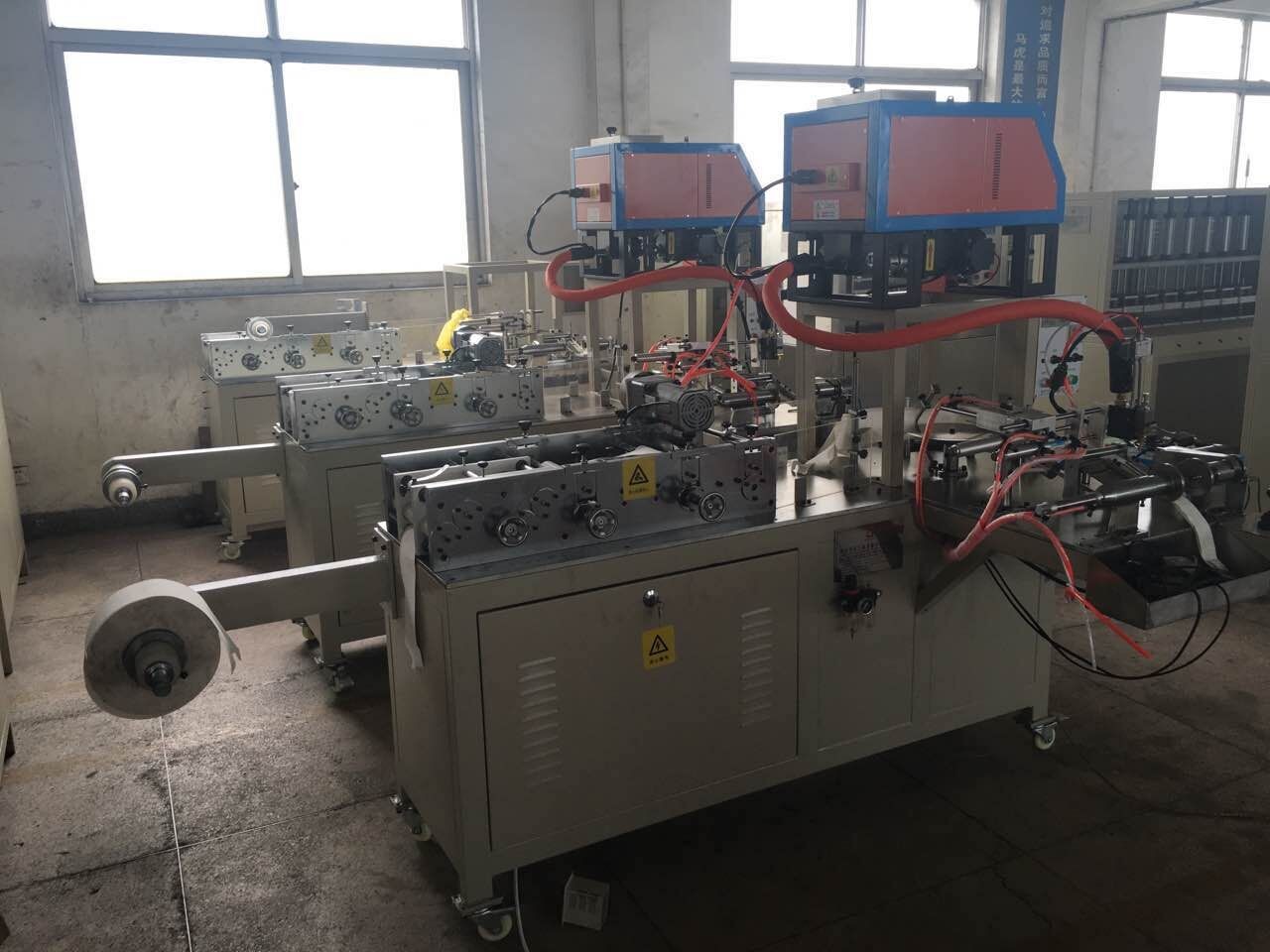

Automatic Coiling Machine Oil Filter Making Machine for Fuel Filter Element , 10 - 40pcs / min
Specification
1.Product Capacity:80-180pcs/h
2.Adjustable Coil Diameter:Ф50-Ф130mm
3.Adjustable Coil Width:70-120mm
4.The Capacity of Hot Melt Unit:10KG
5.Heating Power of Hot Melt Unit: 6KW
6.Power Supply:220V/50HZ
7.Working Air Pressure:0.6Mpa
8.M/C Weight:700KG
9.M/C Size:2500*1208*2100
Feature
1.This machine can corrugate double layers of fuel filter paper.
2.Through PLC program, injection cylinder controls the glue injected in the middle, and left or right of the paper tube.So as to ensure no leakage in paper core.
3.Can freely adjust the rolling speed to appropriate tightness according to the size of coil diameter.
4.Through managing the three-stage counter and approach switch to obtain diversified coil diameter.
5.Melted quickly, the glue delivered quantity can be easily controlled by frequency converter and the hose, nozzle control the temperature independently.
6.Have the function of time heat the hot melt unit automatically, and so time is saved.
7.All the electric elements use advanced products from abroad and have a long working time.
Applications

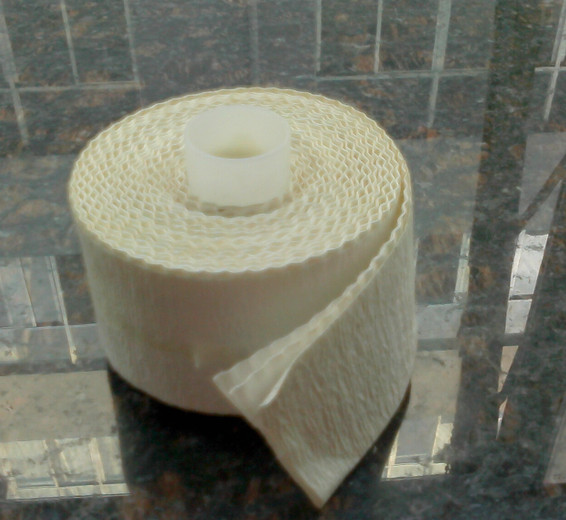

It is technically suitable for shaping the CAV coil paper of filter element.
