| Place of Origin: | wenzhou,China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE,ISO9001 |
| Model Number: | CJKJ-550 |
| Minimum Order Quantity: | 1SET |
| Payment Terms: | 30%t/t deposit, 70%t/t before shipment |
| High Light: | Coil Winding Machine,motor winding machine |
||
|---|---|---|---|
Thread Coil Air Filter Winding Machine Air Filter Production Line Ф500mm
Quick Detail:
| Type | Filter Winding Machine |
| Applications | for Air Filter |
| Package | Standard Export Plywood cases |
| Certificate | CE ,ISO 9001 |
| After-Sales service | Engineers available to service machinery overseas |
| Delivery Time | 20 days after got Your down payment |
| Payment Term | 30% T/T payment in advance, 70% T/T payment before shipment |
Description:
Our company dedicates to the research and development of filter equipment. Our products, widely used in automobile, household appliances,purification,water treatment and hydraulic industry, include the filter manufacturing equipment, the general assembly equipment, the oil, fuel and air filter test stands for testing each filter performance according to international standards, and the phosphorizing,powder spraying and paint spraying production line for product surface treatment
Applications:
1. The machine is for Power Core Air Filters
2. Filter is composed of a single layer of paper rolling into a corrugated shape, two-layer 0f filter paper gluing together then compositing.

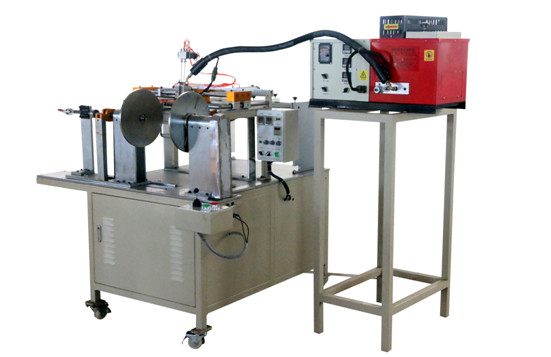

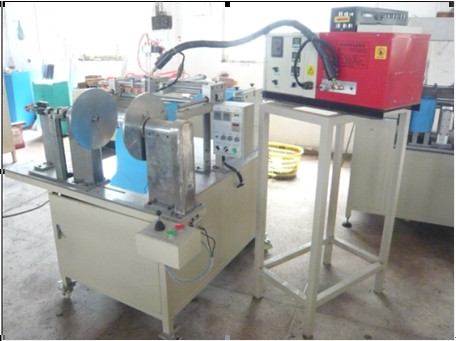

3. Machine equips paper loading device, heating, gluing compositing, meter controller, slitting, side clamp device and ECS. Clutch rewinding, biaxial loading shelf feeding filter paper.
Specifications:
| Max Coiling Diameter | Ф500mm |
| Width | 50-400mm |
| Coiling Speed | 0-20m/min (adjustable) |
| Applicator | 10L |
| M/C Size | 2000*1300*1600mm |
| Applicator Size | 700*700*1600mm |
| M/C Weight | 500KG |
| Working Air Pressure | 0.6MPa |
| Supply Voltage | 220V/50HZ |
| Applicator Power | 3.5kw |
| M/C Power | 0.5kw |
