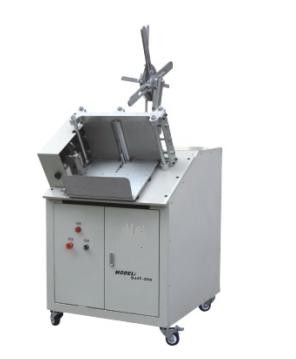

10pcs / min Filter Paper Pleating Machine 1.1KW Filter Machine Manufacturers

Basic Information

Place of Origin:	Wenzhou, China
Brand Name:	CHANGJIANG
Certification:	CE ISO9001
Model Number:	CJJT-250

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Standard export package
Delivery Time:	30 Days after deposit
Payment Terms:	30% T/T payment in advance, 70% T/T payment before shipment

Get Best Price Contact Now

Detail Information

High Light:

Filter Machinery

Product Description

10pcs / min Filter Paper Pleating Machine 1.1KW Filter Machine Manufacturers

Specification

Product Capacity	10pcs/min
Filter Paper Height	20-250mm
Pleating Height	10-35mm
Sizes of Steel Strips	Thickness 0.25-0.3 width 12mm Coil material: inner diameter ≥Φ150mm Outer diameter ≤Φ650mm
Motor Power	1.1KW
Power Supply	380V/50HZ
M/C Weight	400kg
M/C Size	8207501450

Features

Automatically perform the complete procedure of strip molding, clamping, shutoff and resuming.
Uses strip clamp filter pleating joint to prevent the filter element form leakage.
When molding, the stip bears knurling treatment, by which the paper is firmly held and hard of dropping.
The clamping height and width are easy to be adjusted and keep consistency.
The machine has high automatic degree for simple operation, with unique design and long service life.

Applications

The machine is professionally used for clipping the paper ends using the steel strip.
