| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJPT-2 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | filter tester,leakage testing machine |
||
|---|---|---|---|

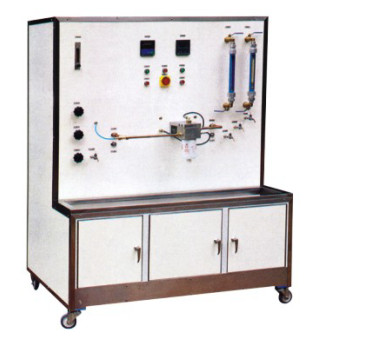

Oil Water Separate Filter Testing Equipment Fuel Filter Tester , ISO 9001 / CE
Quick Detail:
| Type | Filter Tester |
| Applications | for Spin-on Oil Filter |
| Package | Standard Export Plywood cases |
| Certificate | CE,ISO 9001 |
| After-Sales service | Engineers available to service machinery overseas |
| Delivery Time | 20 days after got Your down payment |
| Payment Term | 30% T/T payment in advance, 70% T/T payment before shipment |
Specifications:
| Design flow | 40~550L/h |
| Flow of low loop | 40~180L/h |
| Flow of high loop | 180~550L/h |
| Power of motor | 380W |
| Oil pump capacity | 15L/min |
| Temperature control | room temperature ~50℃ |
| Oil tank | stainless steel material, volume 80L |
| Water tank | 10L |
| Dimension | 1000mm*850mm*1800mm |
Features:
1. This test stand is applicable for testing the water filtration performance of fuel filter.
2. Fuel/water separation efficiency.
3. Executable standards: SAE1488, SAE1839, etc. Characteristics It has two test loops: high flow and low flow. It consists of water feeding system, cleaning system, and cooling system.
Characteristics
1. High flow and low flow.
2. It consists of water feeding system, cleaning system, and cooling system.
3. The panel is stainless steel.
4. It is table control and manual operation.
