| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJMC-4 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | filter tester,leakage testing machine |
||
|---|---|---|---|

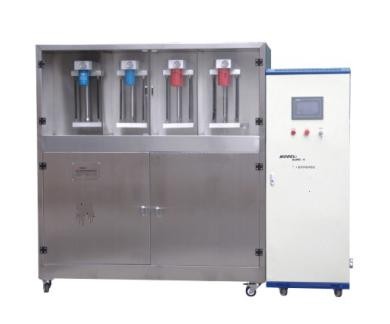

Four Working Station Filter Tester Pulse Fatigue Performance Testing
Quick Detail:
| Type | Filter Tester |
| Applications | for Spin-on Oil Filter |
| Package | Standard Export Plywood cases |
| Certificate | CE,ISO 9001 |
| After-Sales service | Engineers available to service machinery overseas |
| Delivery Time | 20 days after got Your down payment |
| Payment Term | 30% T/T payment in advance, 70% T/T payment before shipment |
Specifications:
| Main Motor Power | 1.5KW |
| Main Oil Pump Model | BB-B32 |
| Rotary Speed | 1400rpm |
| Pressure | 2.45MPa |
| Follow | 32L/min |
| Heater Power | 1kw 220V 50Hz |
| Counter Model | HB96JM, |
| Pulse Frequency | 0.5Hz/1Hz two-grade selection |
| Total Volume of Oil Tank | 60L |
Features:
1. This test stand is applicable for testing the pulse resistance and fatigue performance of filter.
2. Executable standards: ISO4548-5,SAE HS806,JIS D1611 and JB/T5099,JB/T6725. Characteristics
3. The test stand divided into two work areas can simultaneously test four filters. Automatically record the number of pulse times, display pressure and pulse waveform.
4. It has product break stop function. The panel is stainless steel. Manually adjust and set the pulse conditions.
