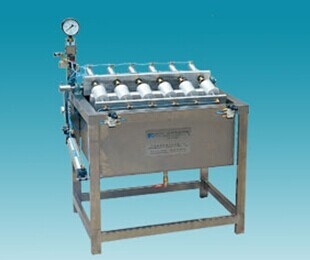

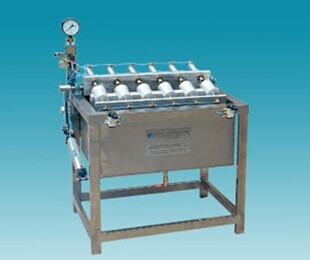

Custom Made Jet Filter Leakage Testing Equipment with Six Working Stations
Quick Detail:
| Type | Filter Tester |
| Applications | for Spin-on Oil Filter |
| Package | Standard Export Plywood cases |
| Certificate | CE,ISO 9001 |
| After-Sales service | Engineers available to service machinery overseas |
| Delivery Time | 20 days after got Your down payment |
| Payment Term | 30% T/T payment in advance, 70% T/T payment before shipment |
Description:
1. This tester is applicable for testing the leak tightness of jet filter.
2. It is equipped with 6 stations and a set of independent pneumatic control system, featuring automatic clamping, air charging and return functions to meet the leakage testing requirement for the jet filters with batch production.
3. Replacing carrier plate and adjusting the locating plate of air inlet can test the leak tightness of jet filters with different diameter and height.
Specifications:
| Testing range | Φ40mm~Φ100mm |
| Filter height | 50mm~200mm |
| Working air pressure | 0.8MPa |
| Precision of pressure gauge | 1.5 Grade |
| Production speed | 6pcs/min~12pcs/min |
| Dimension | 940mmX700X1200mm |
| Weight | 80kg |
