| Place of Origin: | Wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE ISO9001 |
| Model Number: | CJCZ55-1050 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Standard export package |
| Delivery Time: | 30 Days after deposit |
| Payment Terms: | 30% T/T payment in advance, 70% T/T payment before shipment |
| High Light: | filter machinery,paper manufacturing machine |
||
|---|---|---|---|

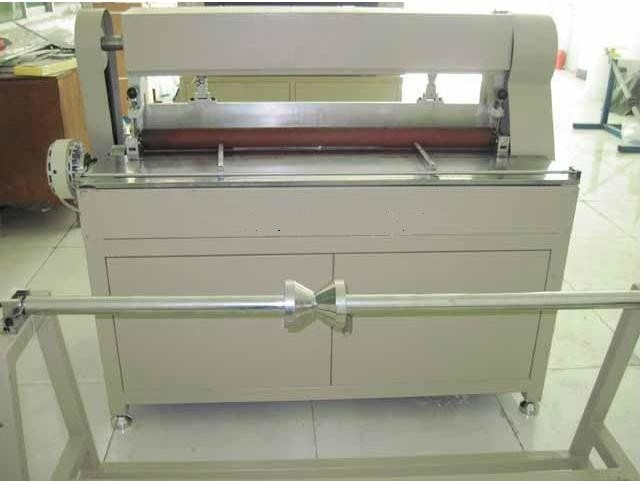

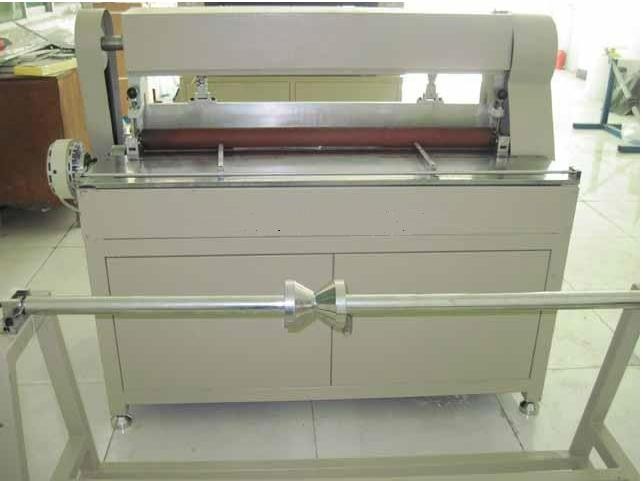

Customized Three Layers Knife Filter Paper Pleating Machine , 1050mm Width
Quick Detail:
| Type | Knife Pleating Machine |
| Applications | Pleating for hydraulic filter |
| Package | Standard Export Plywood cases |
| Certificate | CE ISO 9001 |
| After-Sales service | Engineers available to service machinery overseas |
| Delivery Time | 20 days after got Your down payment |
| Payment Term | 30% T/T payment in advance, 70% T/T payment before shipment |
Consists
Specification
CJCZ 55-1050 Pleater
| Max Width | 1050mm |
| Adjustable pleating height | 8-55mm |
| Pleating speed | 0-200pleats/min (adjustable) |
| Power supply | 380V/50HZ |
| Motor Power | 0.75KW |
| Heater power | 2kw |
| Heating Temp | Normal temperature-200℃ |
| Working air pressure | 0.6Mpa |
| M/C weight | 500kg |
| M/C size | 1670×1200×1240mm |
Feature
1. The pleater uses upper and lower blades to alternately finish the folding.
2. Different pleating heights are acquired evenly and accurately by automatically adjusting the blades distance.
3. The machine is also suitable for folding the iron wire fabric and non-woven fabric of by hydraulic filter, even the multilayer folding.
Applications
1. We can customize the paper-pleating production line of different specifications (machine width and pleat height, this pleating machine also can pleat “M” type).
1. Furthermore,The production line is applied to auto Tri-filter industry, hydraulic pressure, purification and water treatment industries etc.
