| Place of Origin: | wenzhou, China |
|---|---|
| Brand Name: | CHANGJIANG |
| Certification: | CE,ISO9001 |
| Model Number: | CJPB-850 |
| Minimum Order Quantity: | 1SET |
| Price: | 10,000-20,000USD |
| Packaging Details: | plywood cases |
| Delivery Time: | 30 days |
| Payment Terms: | 30% deposit, 70% T/T before shipment |
| High Light: | Filter Manufacturing Equipment,Air Filter Manufacturing Equipment |
||
|---|---|---|---|

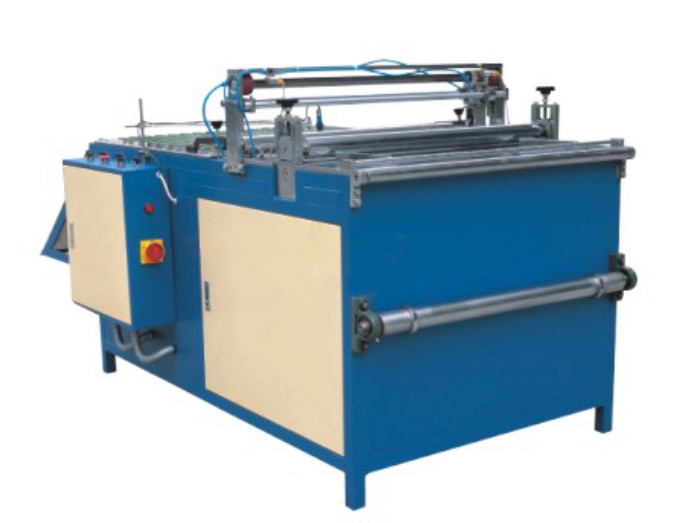

Auto Cutting Fabric Bag Air Filter Making Machine , 300mm - 980mm Cutting Length
General Description
It is used to cut the fabric bag filters.
Consists
Specification
| Production Capacity | 20-30m/min |
| Cutting Width | ≤850mm |
| Cutting Length | 300-980mm |
| Working Air Pressure | 0.6Mpa |
| Power Supply | 220V/50HZ |
| Motor Power | 0.8kg |
| M/C Weight | 300kg |
| M/C Dimension | 2100*1300*1100 |
Feature
1. This machine is equipped with automatic electrical control system which can easily regulate the length of cutting easily.
2. The machine is high efficiency and dimple to operate.
3. The machine can automatically record the production capacity, when it is operated incorrectly, rapidly press the emergency button, then no products will be wasted.
4. The tangent plane can be kept neat and straight while cutting, so it is easy to sew up the interface.
Description
1. Wenzhou Changjiang Filter Machine Co.Ltd the director member of China Internal Combustion Engine Industry Association Filter Branch and the member of China Automobile Manufactures Association Filter Committee, is the complete equipment enterprise specialized in producing filter manufacturing equipment, filter test equipment and molds.
2. Our company dedicates to the research and development of filter equipment. Our products, widely used in automobile, household appliances,purification,water treatment and hydraulic industry, include the filter manufacturing equipment, the general assembly equipment, the oil, fuel and air filter test stands for testing each filter performance according to international standards, and the phosphorizing,powder spraying and paint spraying production line for product surface treatment.
