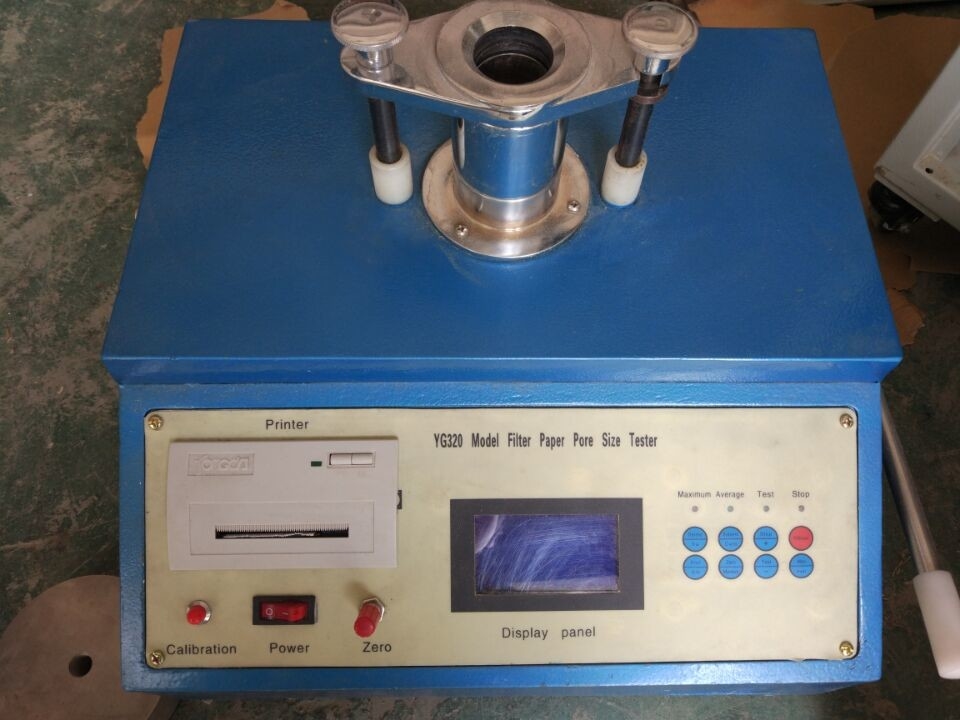

Paper Testing Equipment for Filter Paper Pore Size , Air Pressure 0 - 20kpa

Paper Testing Equipment for Filter Paper Pore Size , Air Pressure 0 - 20kp

Introduction

1.Electronic pore size tester is designed according to QC / T794-2007 standards. According to the principle of capillary action, as long as the measured air forced by a liquid wetting of the test material pores, the air out of the test piece of the largest pore tube of liquid, so that the corresponding hole when the first bubble required pressure. Using the known tension of the liquid surface at the measured temperature,

2.The maximum pore size and average pore size of the test piece can be calculated using the capillary equation.

Technical parameters

1, the air pressure range 00.50-20.00 kpa

2, the pressure rate of 2-2.5kpa / min

3, the LCD screen shows 128 * 64 dot matrix

4, the accuracy of pressure ± 1%

5, the pressure resolution of 0.01kPa

6, aperture resolution of 0.05μm

7, aperture measurement range of 4.57μm-210.8μm

8, the test piece thickness 0.10-3.5mm

9, the test area of 10 ± 0.2cm ²

10, the ring diameter φ35.7 ± 0.5mm

11, the volume of gas cylinders 2.5L

12, instrument size (length × width × height) 275 × 440 × 315

13, power 220V AC

Instrument structure

The instrument consists of mechanical parts and electronic measurement control system.

1,mechanical parts:

The instrument uses box structure, composed of the following parts (see diagram)

(1) test the test piece clamping part

A pressure ring

B test bench

C support tube

D compression cam

E tighten the handle

(2) gas cylinders

(3) speed calibration panel:

A Calibration interface switch b Calibration interface (test flow into the reagent discharge port) c Flow adjustment knob

(4) control panel

(5) air pump

(6) electrical installations

(7) leveling screws
