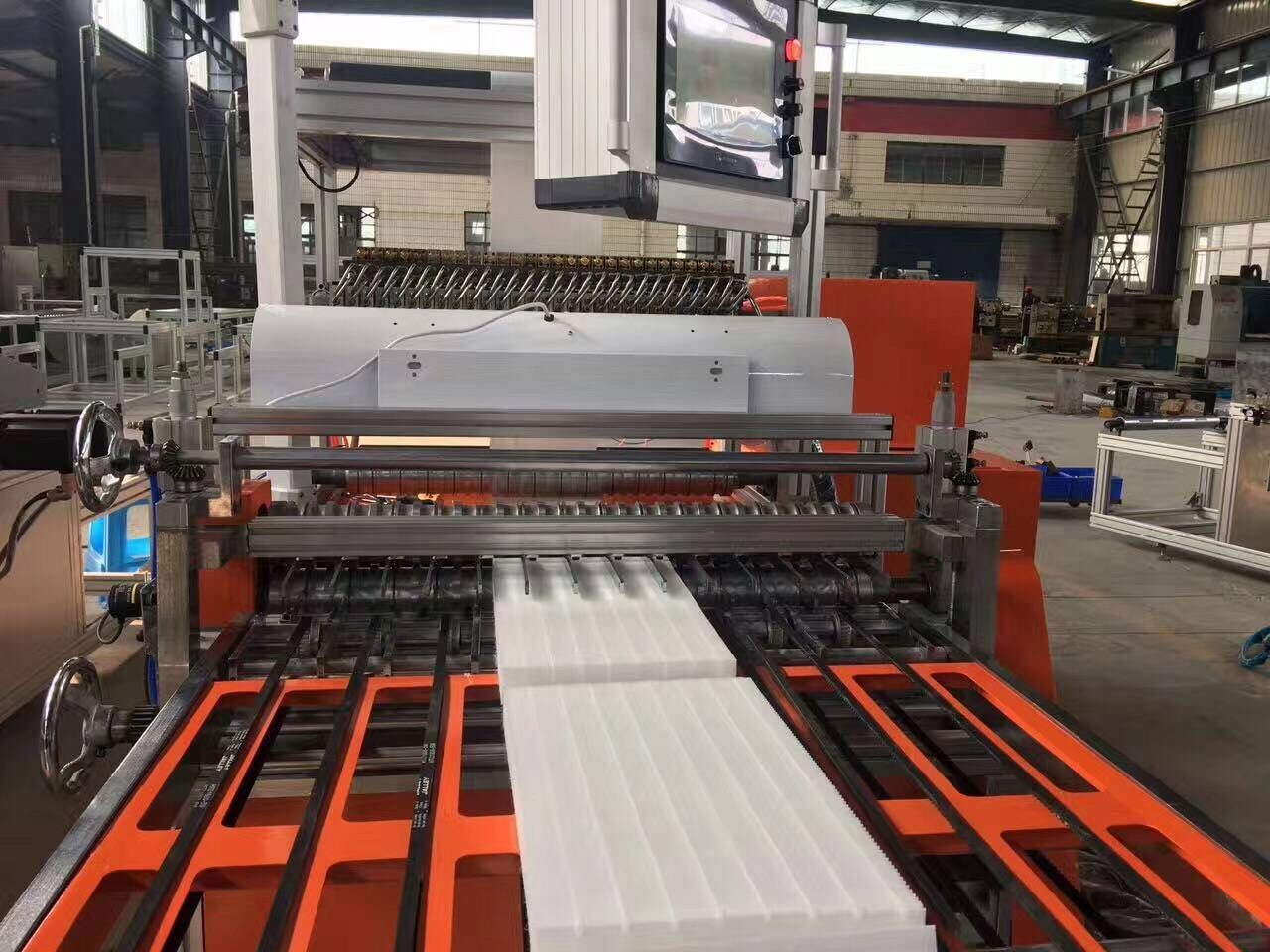

Glass Fiber HEPA Mini Pleating and Gluing Machine , Pleating Height 20mm - 100mm
Feature
1. This machine equips the cutting and trimming device, which is used to meet different filter specifications.
2. This production line is stainless steel body and aluminum frame, which is strong, nice and long life.
3. Six sets of rollers circling placed on one machine, which is easily to be changed and to meet different specifications.

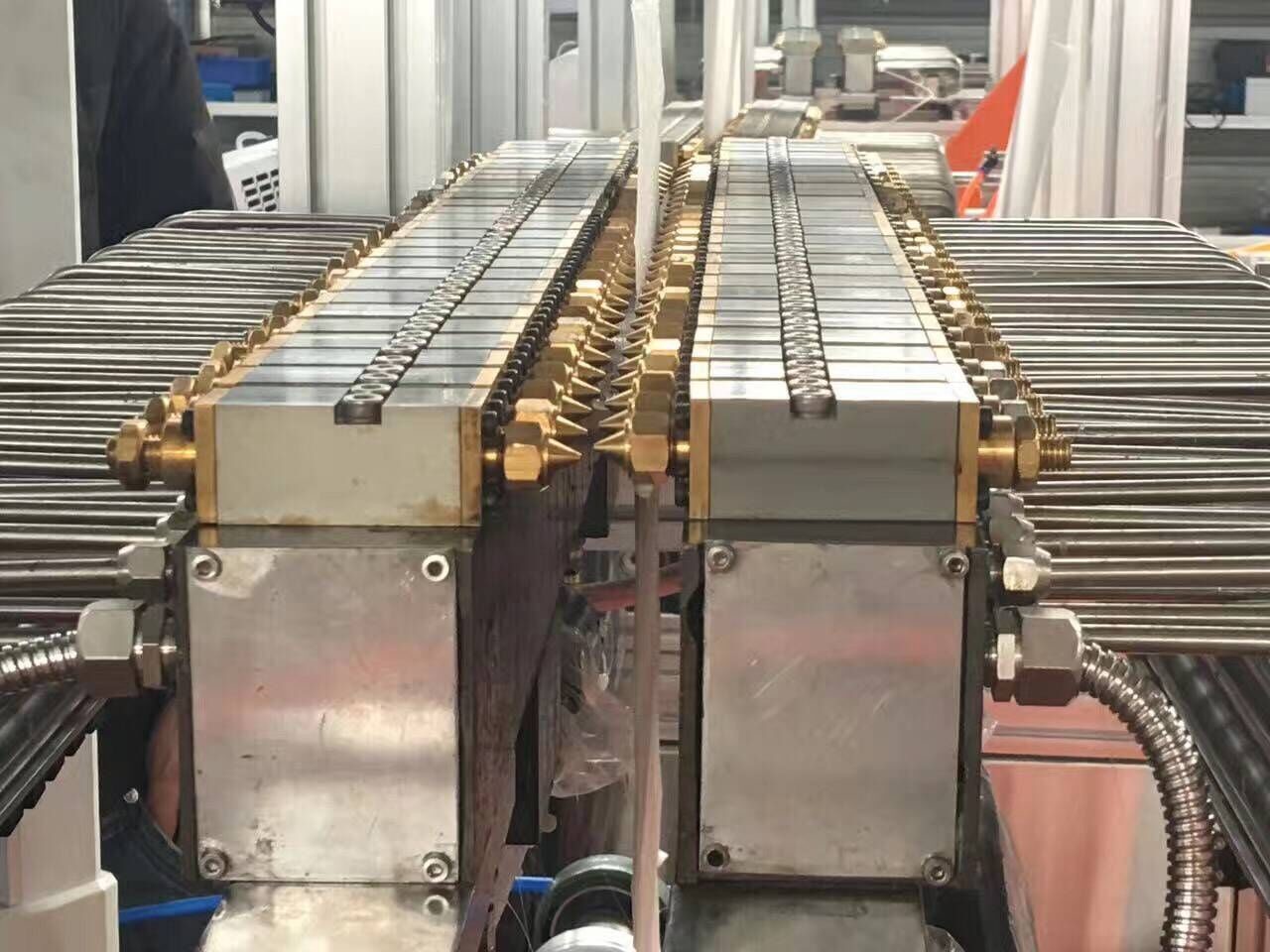

4. The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.
5. High Productive efficiency and good smoothness.
Specification
1. Max Width: 700mm
2. Pleating Height Range 20-100mm
3. Product Speed: 4-10m/min
4. The Interval of Gluing: 25.4mm
5. The number of the Gluing: 2x 26 lines
6. Power Supply: 38V/50HZ
7. Main Power: 16kw
8. Working Air Pressure: 0.6Mpa
9. M/C Weight: 700kgs
10. Hotmelt M/C Dimension: 900x 1000x1500
11. Main M/C Dimension: 7500x 1050x1500
Advantage

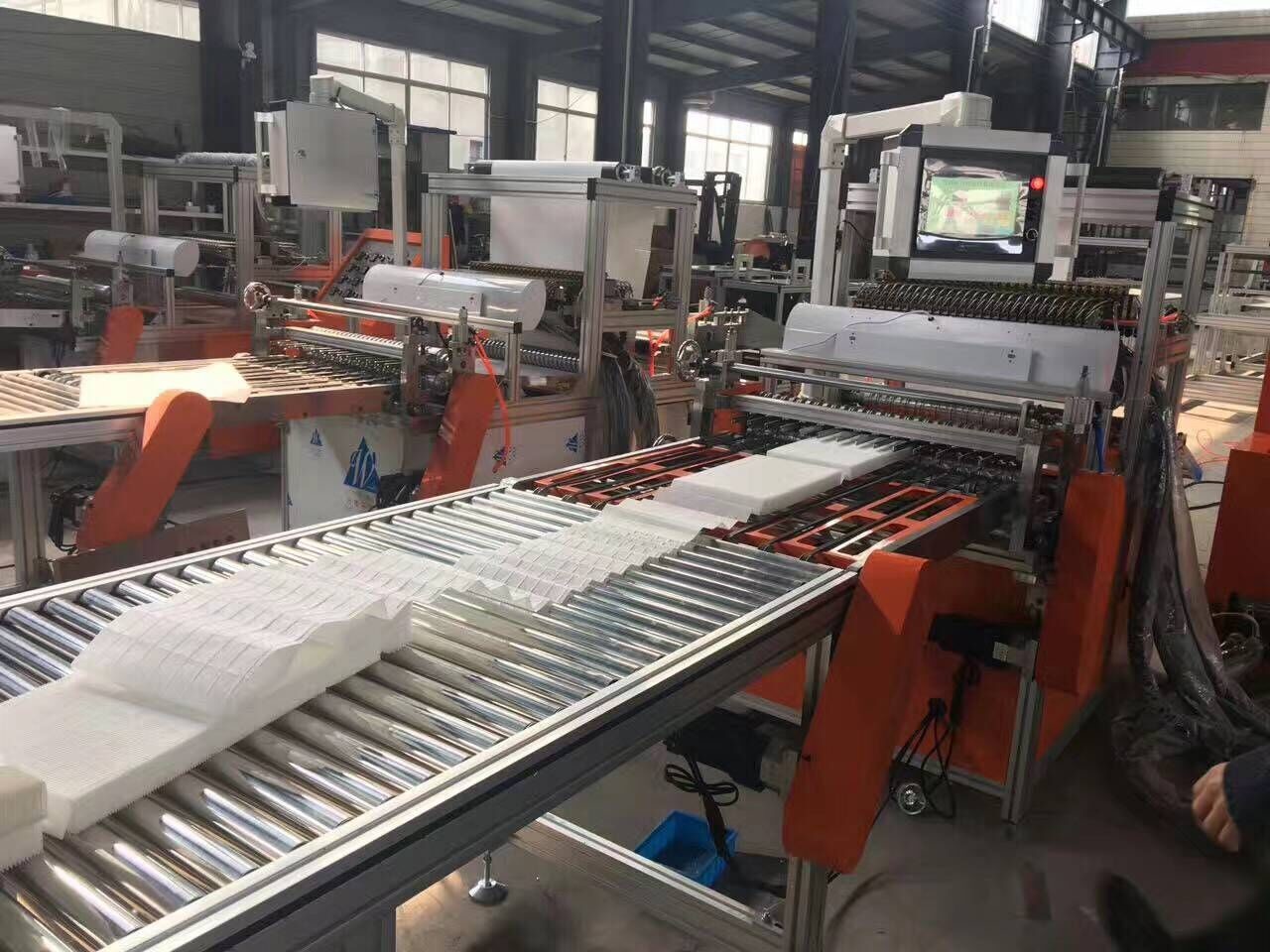

1. Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.
2. The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
3. The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.
4.The specific tension control is precision and so significant for quality pleating.
5.Two pairs of imprinting rollers, gearing and servo motor,and steady pulling rollers with servo drive. Imprinting rolls are unique design to ensure the pleats good look and no damage. Reasonable transmission design avoids precision getting down because of abrasion.
Note
Furthermore, we can customize the paper pleating production line of different specifications.
