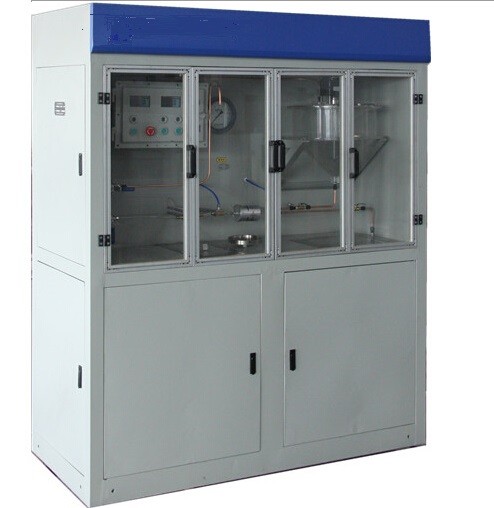

Fuel Filter Oil Water Separate Performance Tester

Fuel Filter Oil Water Separate Performance Tester

Application

1.This test stand is applicable for testing the water filtration performance of fuel filter, i.e. fuel/water separation efficiency.

2.Executable standards: SAE1488, SAE1839, etc.

Characteristics

1.It has two test loops: high flow and low flow. It consists of water feeding system, cleaning system, and cooling system.

2.The panel is stainless steel.

3.It is table control and manual operation.

Specifications:

Design flow: 40~550L/h
Flow of low loop: 40~180L/h
Flow of high loop: 180~550L/h or according to user’s requirement
Power of motor: 380W
Oil pump capacity: 15L/min
Temperature control: room temperature ~50℃
Oil tank: stainless steel material ,volume 80L
Water tank: 10L
Dimension: 1000mm*850mm*1800mm
Weight: 950kg
